Accuris SmartWasher 96 Microplate Washer
$5,109.49
Not sure which configuration is right for your application? Schedule a free consultation with our technical consultants today!
Schedule a consultationProduct Description
The Accuris SmartWasher™ 96 automates the process of ELISA plate washing so assays can be prepared quickly, accurately, and with confidence for absorbance reading. It’s the perfect companion to our popular SmartReader™ 96 microplate reader.

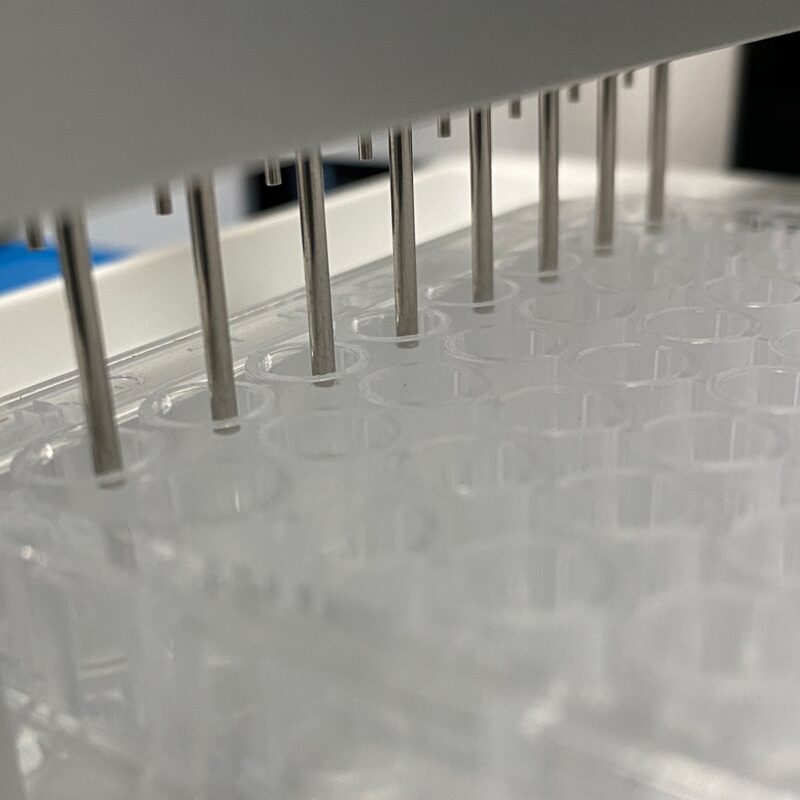

- Precision control of aspiration needle position
– Accurate to 0.1mm
– Minimal residual liquid, ≤1μl/well - Auto rinse function eliminates cross contamination
- Up to 100 wash protocols can be customized and stored
- Liquid level sensors in wash and waste bottles
- Wash protocols can be transferred via flash drive
Research requires flexibility – the SmartWasher™ 96 provides it. Full plates, partial plates, and strips with U, V, C, or flat bottoms are accepted by this fully automated washer. Multiple aspiration point settings allow for minimal residual liquid in the wells after aspiration. All parameters, including dispense volume, suction time, soak and shake cycles, and shaking speed are easily programmed using the large 4.3” LCD display and keypad. Up to 100 wash protocols can be stored on board the SmartWasher™ 96 and recalled when needed, or transferred between machines with a flash drive.

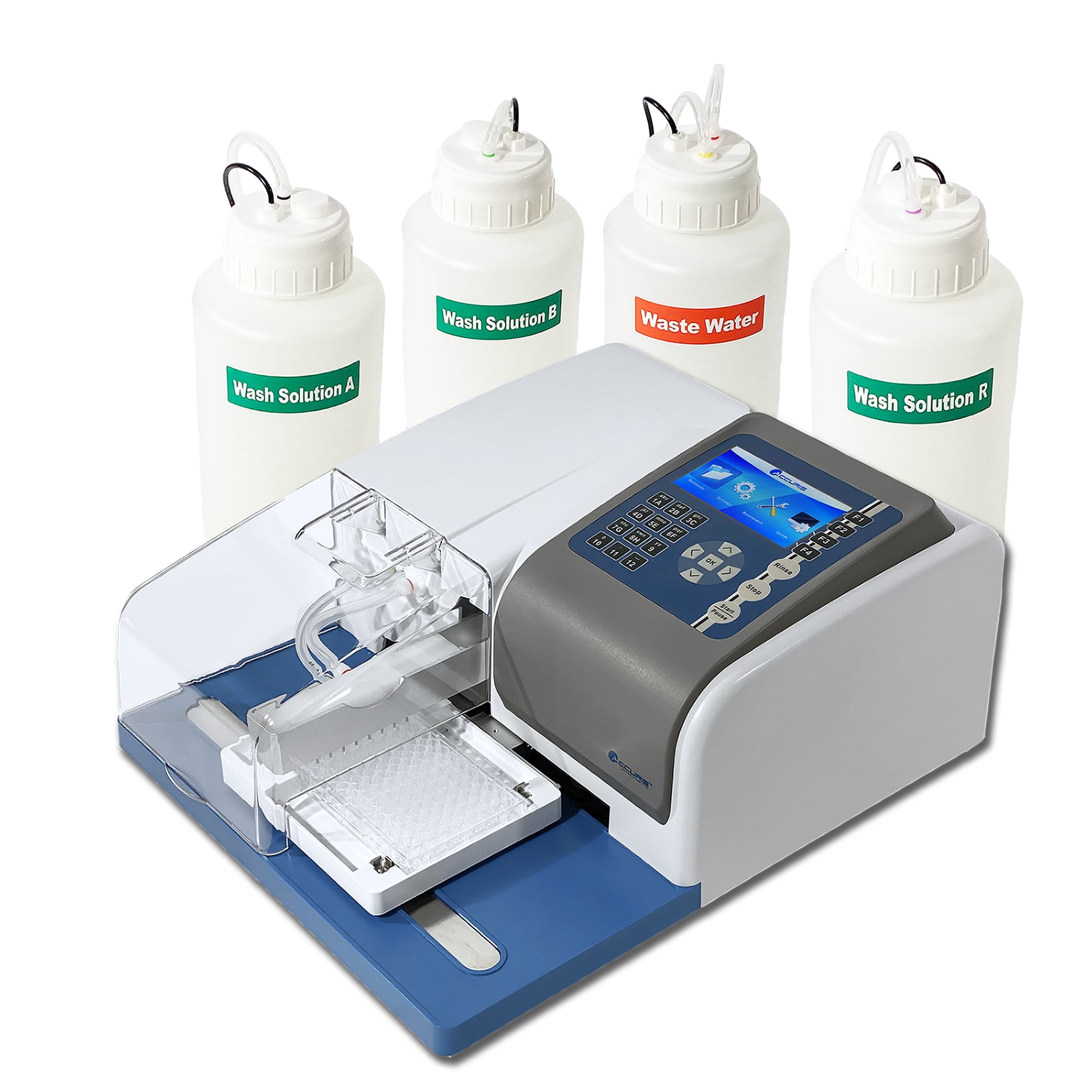

The washer comes equipped with 2 wash bottles, 1 rinse bottle and a waste bottle. All have sensors that alert the user when the solutions are low, or in the case of the waste bottle, when it needs to be emptied. An auto-rinse function primes the dispensing tube and wash heads to prevent cross contamination and clogs.
8- and 12-channel manifolds (purchased separately) accommodate plates in either orientation. A transparent, acrylic shield surrounds the wash area, allowing for visualization of the plate. Should a spill or leak occur, the beveled spill well ensures that the liquid is extracted immediately to avoid cross-contamination.
The SmartWasher™ 96 is the perfect partner for the SmartReader™ 96 Microplate Absorbance Reader as well as other popular readers.
Specifications
Model |
Accuris SmartWasher 96 |
Control and Display |
4.3-inch LCD display |
Wash Heads |
8 channel or 12 channel |
Wash Modes |
1 point, 2 point, or 3 point aspiration |
Compatible Microplates |
96 wells, standard SBS dimensions |
Residual Liquid Volume |
≤ 1ul (each well) |
Dispensing Volume
|
50ul – 2000 ul |
Wash Cycles |
1 ~ 99 cycles |
Program Storage Capacity |
100 programs |
Rinse Function Time Range |
00:00 ~ 03:59 (mm : ss) |
Soak and Shaking Time Range |
00:00 ~ 99:00 (mm : ss) |
Wash Bottle Level Warning |
Yes, sensors included in wash and rinse bottles |
Wash Solution Channels |
3 bottles |
Waste Bottle Level Warning |
Yes; sensors detect when waste bottle is full |
Waste Aspiration |
Yes |
Dimensions |
345 x 460 x 200 mm / 13.5 x 18 x 8.5 inches |
Weight |
11.5 kg / 25.3 Lbs |
Replacement Parts & Accessories
To view available parts for this instrument and instruments like it, click here.
Our parts and accessories inventory is constantly changing. Don't see what you're looking for? Give us a call, we'll be happy to help.
