Across International 35 Cu. Ft. Ultra-Low Upright Freezer ETL 220V
$8,200.00
Not sure which configuration is right for your application? Schedule a free consultation with our technical consultants today!
Schedule a consultationProduct Description

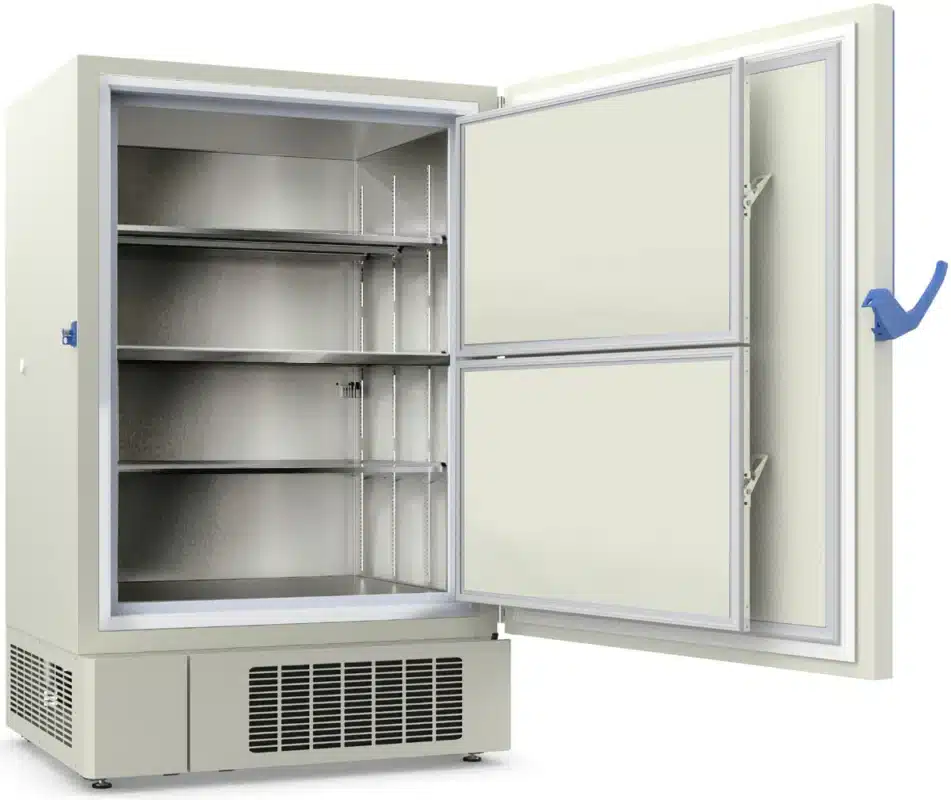

The Ai Glacier 35 Cu Ft -86°C ultra-low upright ULT freezer is perfect for extra-large storage of sample and products. Unique dual parallel compressor design offers you speedy cooling and great temperature uniformity inside the chamber.
- The biggest -86°C ultra-low freezer on the market!
- CDC and VFC compliant, great for storage of Covid-19 vaccines, DNA, RNA, virus samples, organs, and serum
- Remote alarm, RS232, 4-20mA transmitter (optional)
- ETL tested to UL and CSA standards
- ETL tested to UL 471, Commercial Refrigerators and Freezers standards (optional)
- Central control with large 7″ touch screen LCD display provides you a graph of temperature vs time curve.
- Wide operation temperature ranges from -10°C to -86°C
- All stainless steel interior for clean operation, durability, and ease of maintenance
- Lock-able door, high or low temperature alarms, power failure alarm, door open alarm, filter clogging alarm, password protection, tons of security features to protect you, your products, and the unit
- Dual silicon sealing gaskets for ultra airtight operation
- 24-hour battery backup for controller
- USB interface for data export and storage
- Extremely quiet and reliable
- Front document holder for handy storage
- Environmentally friendly refrigerant
- Use only RoSH compliant non-toxic components and materials
- Tons of safety functions
- Built-in swivel casters with leveling feet
Specifications
| Model | G35 |
| Electrical requirements | 220V (±10%) 60Hz 1-Phase, 2000 watts 13.7A (NOT compatible with 220V 50Hz power) |
| Performance | Temperature range: -10°C to -86°C Time to reach -86°C: 7.2 hours |
| Compressor | Make: SECOP Model: SC18MLX (104L2138) Power: 220V 60Hz 1-PHASE, 1HP Number of compressors: two, parallel Refrigerant: Ai proprietary mixture gases, CFC-free |
| Chamber | Dimensions: 40.25 x 27.5 x 54.25″ (WxDxH) Material: 304 stainless steel Capacity: 34.6 Cu Ft |
| Shelf | Come with unit: three adjustable shelves (4 compartments) Material: 304 stainless steel Capacity: 110 Lbs on three shelves, evenly distributed 450 Lbs on the base of the chamber, evenly distributed Dimensions: 40 x 27 inches (compatible with D35) |
| Door and gasket | Inner door: two, each with one sealing gasket External door: one with dual sealing gasket, lock-able |
| Access port | Two, one on the side and one in the back, one inch diameter |
| Built-in swivel casters | Four, with leveling feet |
| Noise level | 48 dBA |
| Communication | Remote alarm, RS232, 4-20 mA transmitter (optional) |
| Working environment | – Temperature: 10°C to 32°C (humidity <57% Rh required at 32°C) – Humidity: <80% Rh – Altitude: < 2000 m / 6561 Ft – Stable, well-ventilated platform with no excessive dust – Keep freezer at least 12 inches from any walls or ceiling – Use dedicated power, do not share outlet – Extension power cable should be less than 10 feet is required – Freezer and power outlet should be grounded properly – Avoid direct sunlight, water spill and do NOT use freezer outdoor – Clean condenser fins and remove frost inside chamber at least once a month – Important! Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time. |
| Battery backup system | 24 hours (for controller display and alarms only) |
| Unit/shipping weight & dimensions | 950 Lbs / 1100 Lbs 53 x 41.5 x 78″ / 60 x 55 x 95″ (WxDxH) |
| Safety | Compressor over-temp protection Compressor power surge delay protection Short circuit and ground protection Over-current protection Over-temperature and low-temperature protection Power failure protection Low battery, door open, filter clogging, system failure alarms External door with lock |
| Compliance | UL STD 61010-1 (standard) CSA C22.2 NO. 61010-1 (standard) UL STD 471 (optional) |
