EcoChyll X1 – Small-Scale Lab Rotary Evaporator – 3L
2-Year Factory Warranty
Not sure which configuration is right for your application? Schedule a free consultation with our technical consultants today!
Schedule a consultationProduct Description
- Best-in-class evaporation rates
- Cost-effective by eliminating expensive rotary motor with overhead stirring
- Easy-to-use, with simple product drainage not requiring removal of large evaporation vessels
- Excellent energy efficiency
- Space saving, with a low form factor
- Safety guaranteed, with all glassware remaining stationary throughout operation
Benchtop Rotary Evaporator

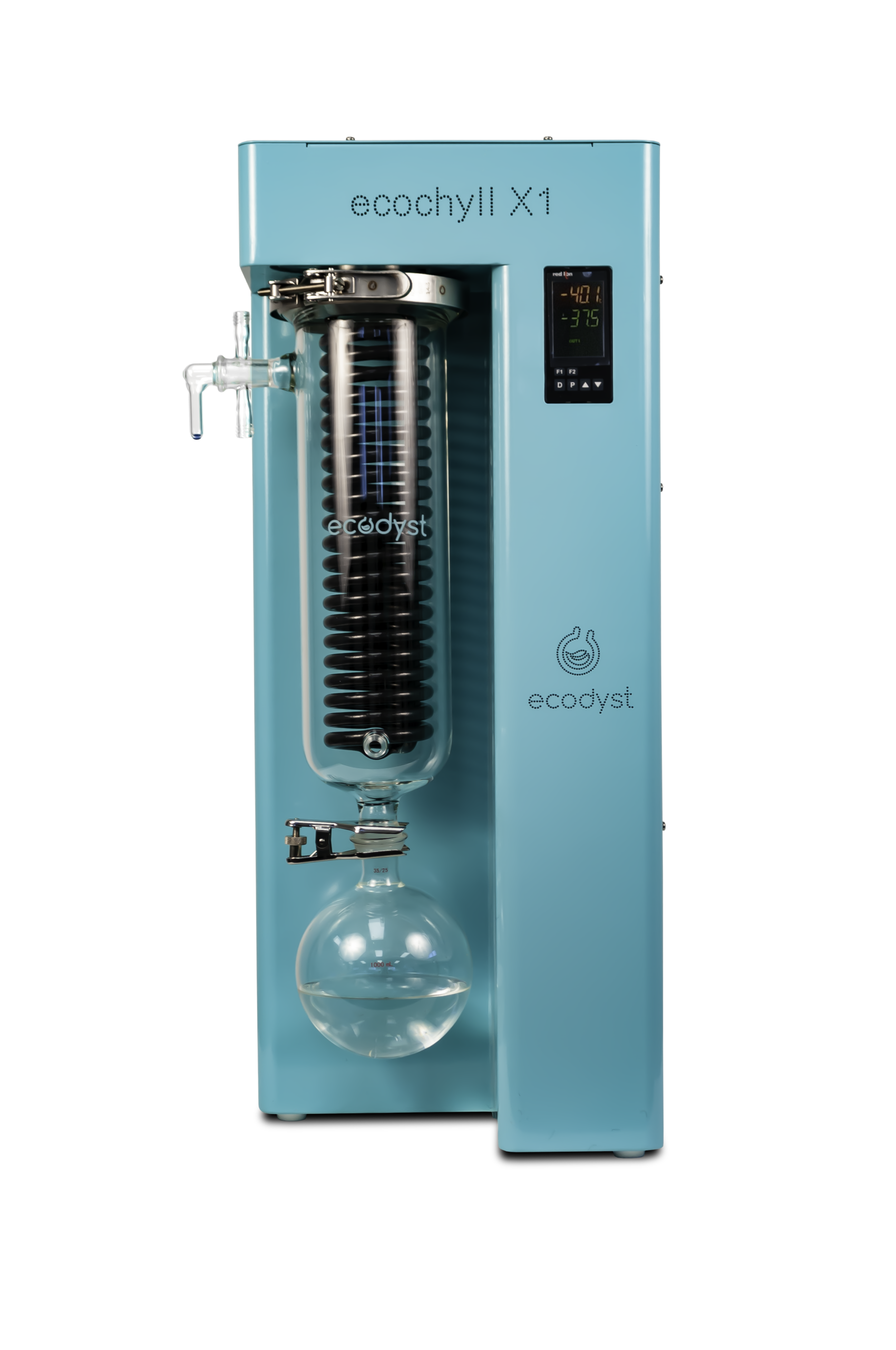

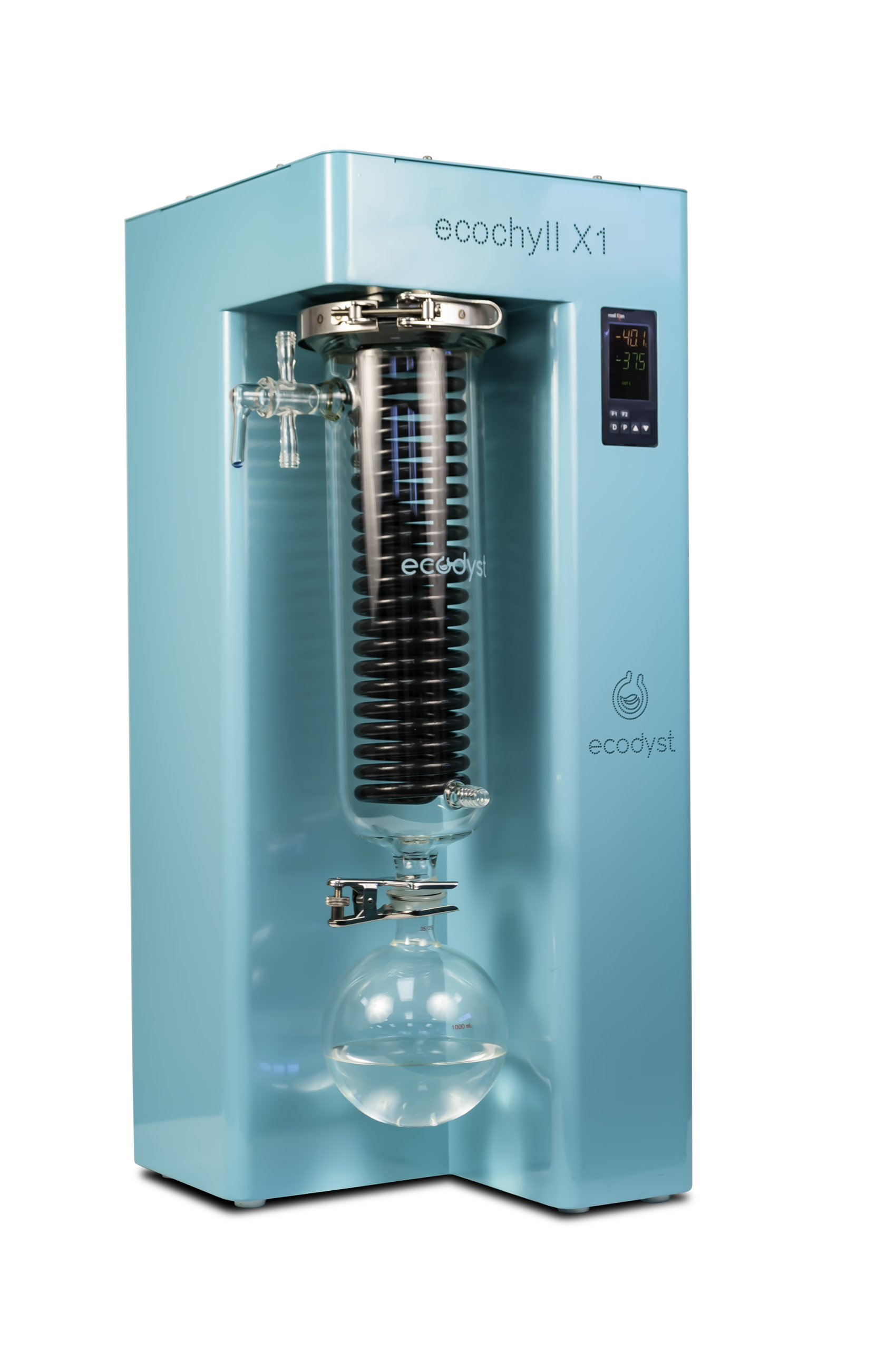

EcoChyll X1, a powerful small footprint smart self- cooling condenser that upgrades any brand rotary evaporator.
Benchtop Rotovap Systems from Ecodyst
Engineered for convenient evaporation and concentration of samples where space is at a premium, the EcoChyll® X1 pioneers tankless evaporation technology for rotary evaporators. Based chemical resistant metallic coil condenser with completely stationary glassware, the EcoChyll® X1 provides an efficient and safe alternative to glycol chillers, dry ice or water condensers.

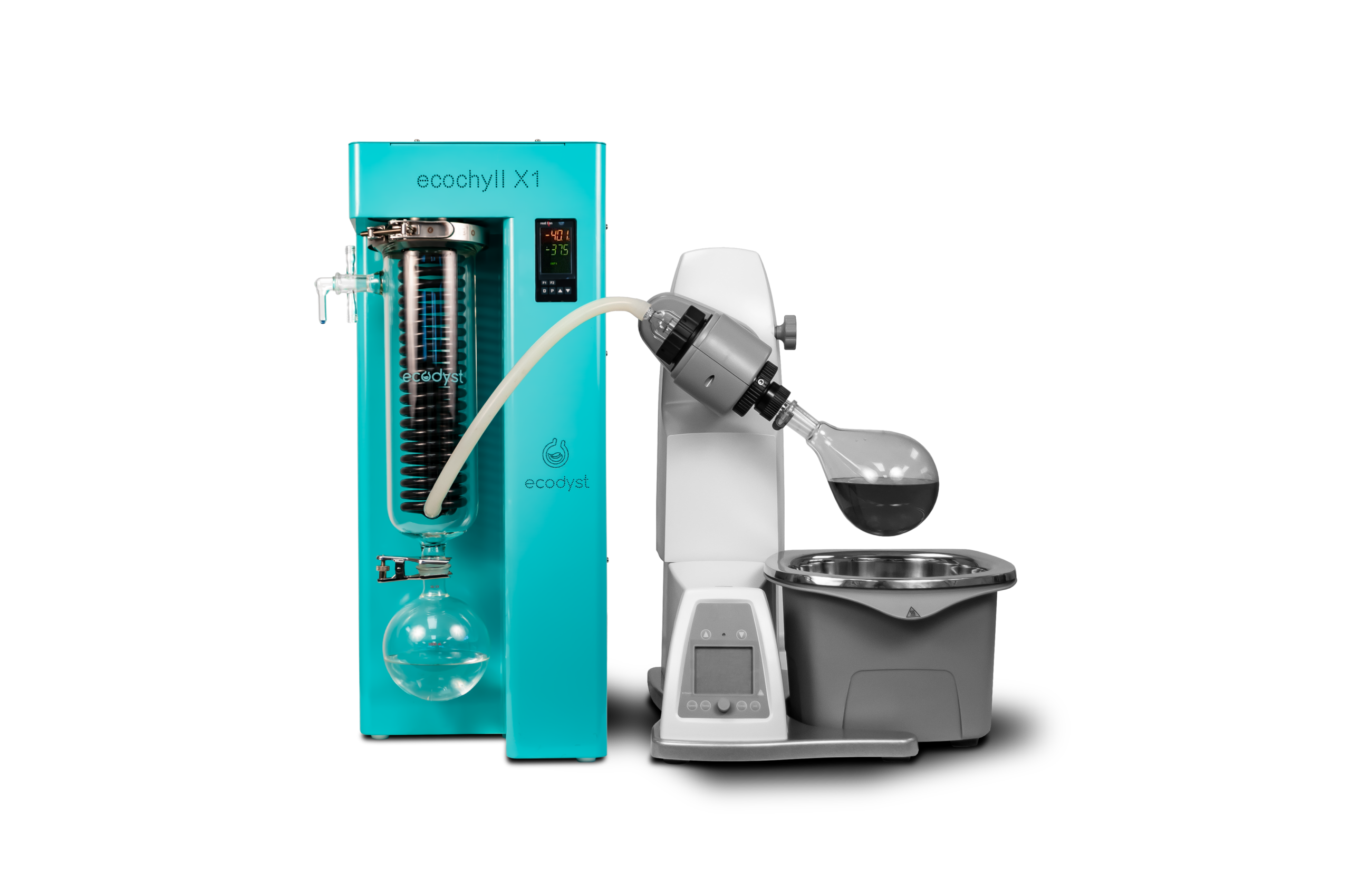

The compact smart self-cooling condenser is compatible with traditional rotary evaporators, with a footprint of less than 1 square foot meaning. The EcoChyll® X1 is designed to provide labs with a cutting-edge and powerful condenser solution for faster sample dry downs, including aqueous solutions. It can also be used as a cold trap for any other applications such as short path or concentrators.
EcoChyll X1 Smart-Cooling Chiller and Condenser
Cooling System Designed for: |
Rotary evaporators and other distillation equipment |
Upgrades Existing Rotary Evaporators: |
Yes |
Cooling Capacity |
602 watts (-10C), 248 watts (-35C). See brochure below for complete cooling capacity chart |
EcoChyll Technology: |
Eliminates dry ice, recirculating chiller, and antifreeze and/or water. It has no consumables |
Features
- Small footprint
- Smart self-cooling condenser with chemically resistant coils and a huge surface area
- Condenser is always available and eliminates recirculating chiller, antifreeze, dry ice, and water
- No associated operational expenses
- Eco-friendly energy efficiency
- Designed for an extremely wide range of solvents, including water and all solvents used in the cannabis and hemp industries
- Single user operation with minimal interference required
Specifications
Equipment
- Dimensions (approx.) – 12″ L x 12″ W x 29″ H
Electrical
- Power cons. 645 watts
- Available in both 115 and 220 Volts, 50/60 Hz
Technical
- EcoChyll cooling capacity – Available on request
- EcoChyll minimum temperature – -40°C
- Metal parts – Stainless steel 316
- Glass parts – Borosilicate glass
- Condensation coils – coated with chemically-resistant fluoropolymer Halar
- Sealing and tubing materials – PTFE and FEP
- Warranty** – Two-Year Manufacturer (includes parts & labor, excludes all glass components)
EcoChyll A Small-Scale Lab Rotary Evaporator: Key Advantages
- Best-in-class evaporation rates
- Cost-effective by eliminating expensive rotary motor with overhead stirring
- Easy-to-use, with simple product drainage not requiring removal of large evaporation vessels
- Excellent energy efficiency
- Space saving, with a low form factor
- Safety guaranteed, with all glassware remaining stationary throughout operation
Ecodyst has pioneered a brand-new self-cooling technology designed to disrupt the traditional rotary evaporator (rotovap) market. The EcoChyll® S is one our proprietary tankless evaporator for low volume extractions, but the upcoming Ecodyst 1H is envisaged as the successor to the already successful EcoChyll® S.
Replacement Parts & Accessories
To view available parts for this instrument and instruments like it, click here.
Our parts and accessories inventory is constantly changing. Don't see what you're looking for? Give us a call, we'll be happy to help.
Service
Service Agreements |
Silver |
Gold |
First Class Ship & Fix |
Economy Ship & Fix |
| Preventative Maintenance Visit | 1 Preventative Maintenance Visit per Year | 1 Preventative Maintenance Visit per Year | ||
| Parts Covered |  |
|
||
| Labor Covered | |
|
|
|
| Unlimited Remote Tech Support | |
|
|
|
| Depot Repair | |
|
||
| Depot Preventative Maintenance | |
