- 740 L, classic interface, VIP, green cooling liquids, air cooling
- handle left side, 3 shelves, 120 – 208 V/60 Hz (US)
Sale!
Eppendorf CryoCube F740h, 740L
$7,995.00
Not sure which configuration is right for your application? Schedule a free consultation with our technical consultants today!
Schedule a consultationProduct Description

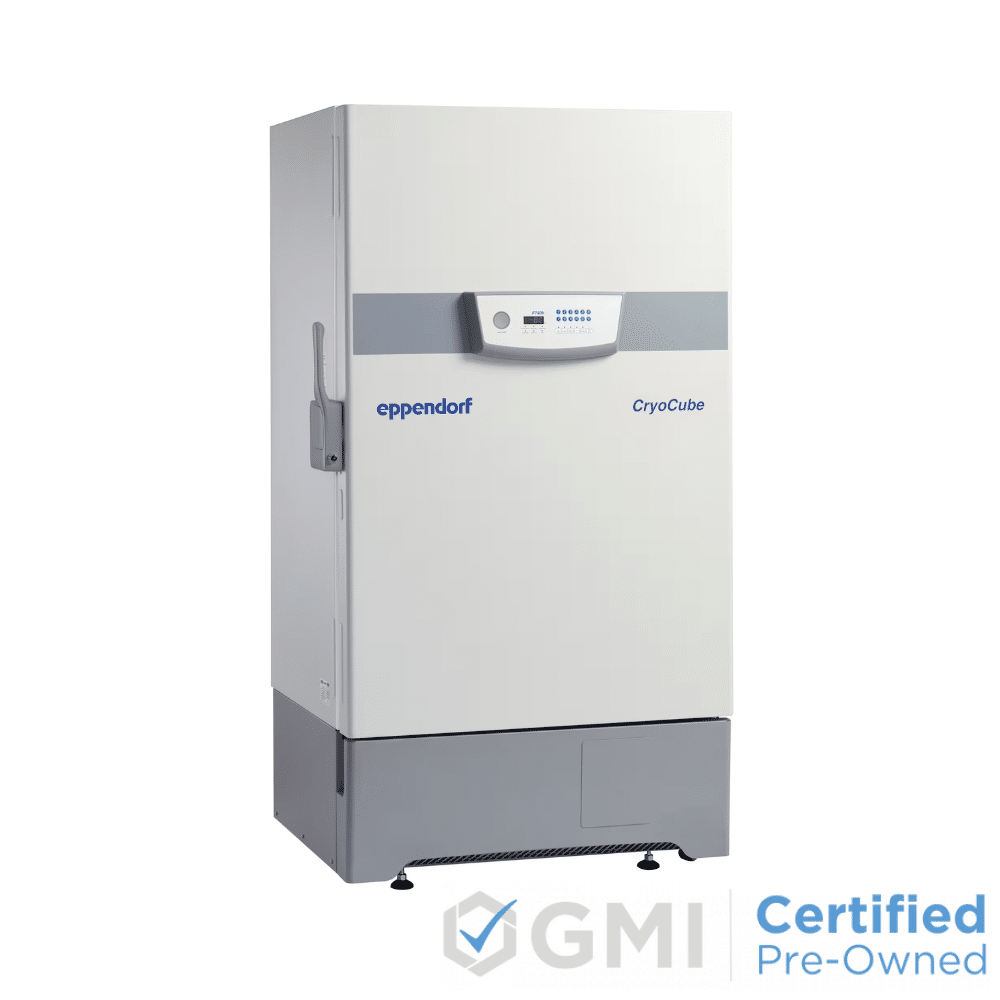

The Eppendorf CryoCube F740 series is one of the latest additions to the Eppendorf ULT Freezer family (also known as ultra-low temperature freezer, -80°C). Combining the high-quality tradition of our previous freezers with an increased capacity, the CryoCube F740 series ULT freezer is designed to store more of your samples securely while maintaining optimal energy usage. The integration of the PhysioCare Concept during development means that the CryoCube F740 is easier and more comfortable to use, supports an ergonomic workspace, and enables an optimal workflow in the lab.
Features
- Classic interface
- Volume: 740 L (26.1 ft³)
- Consumes only 11.8 kWh/day (green; -80 °C; 230 V))
- Holds up to 57,600 samples
- Pull-down time to -80 °C: 4 h 10 min
- Polyurethane foam + Vacuum insulation panels (body)
- 3 compartments with 3 insulated and sealed inner doors
- Left-handed outer door, air-cooled
- Compatible with CO2/LN2 injection system (Type “narrow”) as backup for highest sample safety
Specifications
|
Box capacity per freezer |
|
| 53 mm (2 in) tall boxes | 576 |
| 64 mm (2.5 in) tall boxes | 432 |
| 76 mm (3 in) tall boxes | 360 |
| 102 mm (4 in) tall boxes | 288 |
| 127 mm (5 in) tall boxes | 216 |
|
DWP capacity per freezer |
|
| 102 mm (4 in) tall boxes | 864 |
|
Box capacity per rack |
|
| 53 mm (2 in) tall boxes | 32 |
| 64 mm (2.5 in) tall boxes | 24 |
| 76 mm (3 in) tall boxes | 20 |
| 102 mm (4 in) tall boxes | 16 |
| 127 mm (5 in) tall boxes | 12 |
| DWP | 48 |
| Cooling type | air cooling |
| Cooling liquid | green cooling liquids (R290 / R170) |
| Heat output | 492 W |
| Insulation | vacuum insulation paneling / polyurethane foam |
| Capacity | 740 L (26.1 ft³) |
| No. of compartments | 3 |
| No. of internal doors | 3 |
| Max. racks per freezer | 18 |
| Noise level | 47.8 dB |
| High-Efficiency | yes |
| Power supply | 120 – 208 V, 60 Hz |
| Max. power consumption | 11800 W |
| Average Daily Consumption (230 V) | 11.8 kWh/day |
| Average Daily Consumption (208 V) | 11.8 kWh/day |
| Average Daily Consumption (115 V) | 13.0 kWh/day |
| Dimensions (W × D × H) | 111 × 91.3 × 197.3 cm / 43.7 × 36 × 77.7 in1)2)3) |
| Shipping weight | 357 kg / 787 lb |
| Product weight | 308 kg / 679 lb |
| Temperature range | -50 °C to -86 °C |
| Access port | 2 |
| Remote Device Monitoring and Notifications (VisioNize®) | VisioNize® box enabled |
| Pull-down time to -80 °C | 4 h 10 min4) |
|
Included |
|
| CO2 backup system | no |
| LN2 backup system | no |
| Chart recorder | no |
1)Optional CO2/LN2 backup systems add 8.65 cm/3.5 in to height.
2)To allow for handles and hinges, add 80 mm to width of upright freezers and 110 mm to the depth of chest freezers.
3)Door open adds up to 15 cm.
4)Empty freezer with shelves fitted, upright freezers only, pull down from 21 – 23 °C ambient conditions.
