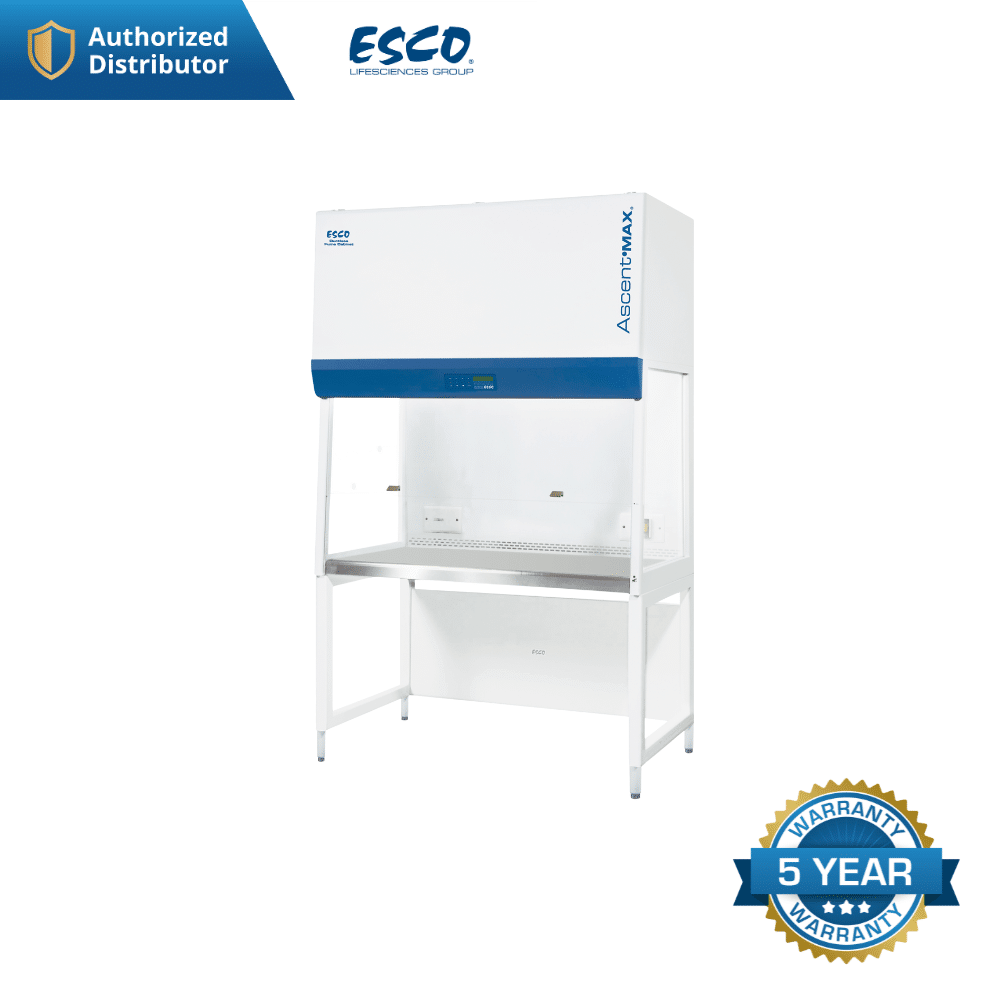

Esco Ascent™ Max – E Series Fume Hood

Categories: Ductless Fume Hoods, Fume Hoods, Biological Safety Cabinets

Not sure which configuration is right for your application? Schedule a free consultation with our technical consultants today!

Product Description

Esco Ascent™ Max (ADC) Ductless Fume Hoods provides operator and environment protection by filtering out chemical fumes and recycling clean air directly back to the laboratory. Unlike conventional fume hoods, these hoods provide energy savings, mobility and convenience as you do not have to deal with complicated ducting systems.

The ADC-E series, is equipped with a main carbon filter and a secondary HEPA filter located at the exhaust. This unit is suitable for cleanroom applications and for handling chemicals in powdered/ solid form.

Features

Grade 304 stainless steel work top surface that will never rust, chip or generate particles.
Electrogalvanized steel wall for maximum durability
Lip at the front edge of work surface ensures that any spillage is contained in the work zone.
Sentinel™ microprocessor control system with audible and visual alarms for unsafe conditions.
Front service panel opens up easily for maintenance functions
Optional VOC sensor to monitor chemical concentration within the cabinet work zone.
All cabinet service and filter replacement can be carried out from the front, allowing the cabinet to be placed against wall in the laboratory to save space.
Over 8 different Nanocarb™ filter types to choose from: Volatile organic compounds, acid, mercury, sulfur, halogen, aldehyde, ammonia or ethers/chloroform.

ADC PP with BCC min 1 - Esco Ascent™ Max – E Series Fume Hood

Robust Hood Construction

Key components including Fluorescent Lamps, Motor Capacitor, Electrical parts, and Switch Control are mounted outside the airstream and away from contaminated areas to permit easy service.

Centrifugal Fan

Permanently lubricated fans are energy-efficient with external rotor motor design that reduces operating costs.
Extremely low noise and low vibration level

Filtration System

Main Filter: Nanocarb™ Activated carbon, available in 8 types
Efficient perimeter clamping ensures no leakage as well as allows easy filter change procedure.

Technical Specifications

Guide to Models (Ascent Max Series)
ADC – 4 E 1
External Width	Code	Model	Code	Electrical	Code
28.7″ (2ft.)	2*	ADC-B-standard model	B	220-240 VAC , 50 Hz	1
40.7″ (3ft.)	3	ADC-C-has a secondary carbon filter	C	110-220 VAC , 60 Hz	2
52.8″ (4ft.)	4	ADC-D-standard model + Transparent Back wall	D	220-240 VAC , 60 Hz	3
64.8″ (5ft.)	5	ADC-E- has a secondary HEPA filter	E
76.8″ (6ft.)	6

*2 ft. fume hood is only available for ADC-B models.
ADC-_B/C/D/E_-PP –with Swan neck faucet and PP sink provision

Model	220-240 VAC, 50 Hz	ADC-3E1	ADC-4E1	ADC-5E1
	220-240 VAC, 50 Hz	ADC-3E1-PP	ADC-4E1-PP	ADC-5E1-PP
	110-120 VAC, 60 Hz	ADC-3E2	ADC-4E2	ADC-5E2
	110-120 VAC, 60 Hz	ADC-3E2-PP	ADC-4E2-PP	ADC-5E2-PP
	220-240 VAC, 60 Hz	ADC-3E3	ADC-4E3	ADC-5E3
	220-240 VAC, 60 Hz	ADC-3E3-PP	ADC-4E3-PP	ADC-5E3-PP
Nominal Size		0.9 meter (3′)	1.2 meter (4′)	1.5 meter (5′)
External Dimensions ( W x D x H)		1035 x 736 x 1455 mm 40.7” x 29.0” x 57.3”	1340 x 736 x 1455 mm 52.8” x 29.0” x 57.3”	1645 x 736 x 1455 mm 64.8” x 29.0” x 57.3”
Internal work area ( W x D x H)		965 x 596 x 765 mm	1268 x 596 x 765 mm	1575 x 596 x 765 mm
Internal work area ( W x D x H)		38.0” x 23.5” x 30.1”	50.0” x 23.5” x 30.1”	62.0” x 23.5” x 30.1”
Airflow Velocity (inflow)		0.4 m/s

Technical Specifications

Guide to Models (Ascent Max Series)
ADC - 4 E 1
External Width	Code	Model	Code	Electrical	Code
28.7" (2ft.)	2*	ADC-B-standard model	B	220-240 VAC , 50 Hz	1
40.7" (3ft.)	3	ADC-C-has a secondary carbon filter	C	110-220 VAC , 60 Hz	2
52.8" (4ft.)	4	ADC-D-standard model + Transparent Back wall	D	220-240 VAC , 60 Hz	3
64.8" (5ft.)	5	ADC-E- has a secondary HEPA filter	E
76.8" (6ft.)	6

*2 ft. fume hood is only available for ADC-B models.
ADC-_B/C/D/E_-PP –with Swan neck faucet and PP sink provision

Model	220-240 VAC, 50 Hz	ADC-3E1	ADC-4E1	ADC-5E1
	220-240 VAC, 50 Hz	ADC-3E1-PP	ADC-4E1-PP	ADC-5E1-PP
	110-120 VAC, 60 Hz	ADC-3E2	ADC-4E2	ADC-5E2
	110-120 VAC, 60 Hz	ADC-3E2-PP	ADC-4E2-PP	ADC-5E2-PP
	220-240 VAC, 60 Hz	ADC-3E3	ADC-4E3	ADC-5E3
	220-240 VAC, 60 Hz	ADC-3E3-PP	ADC-4E3-PP	ADC-5E3-PP
Nominal Size		0.9 meter (3')	1.2 meter (4')	1.5 meter (5')
External Dimensions ( W x D x H)		1035 x 736 x 1455 mm 40.7” x 29.0” x 57.3”	1340 x 736 x 1455 mm 52.8” x 29.0” x 57.3”	1645 x 736 x 1455 mm 64.8” x 29.0” x 57.3”
Internal work area ( W x D x H)		965 x 596 x 765 mm	1268 x 596 x 765 mm	1575 x 596 x 765 mm
Internal work area ( W x D x H)		38.0” x 23.5” x 30.1”	50.0” x 23.5” x 30.1”	62.0” x 23.5” x 30.1”
Airflow Velocity (inflow)		0.4 m/s
