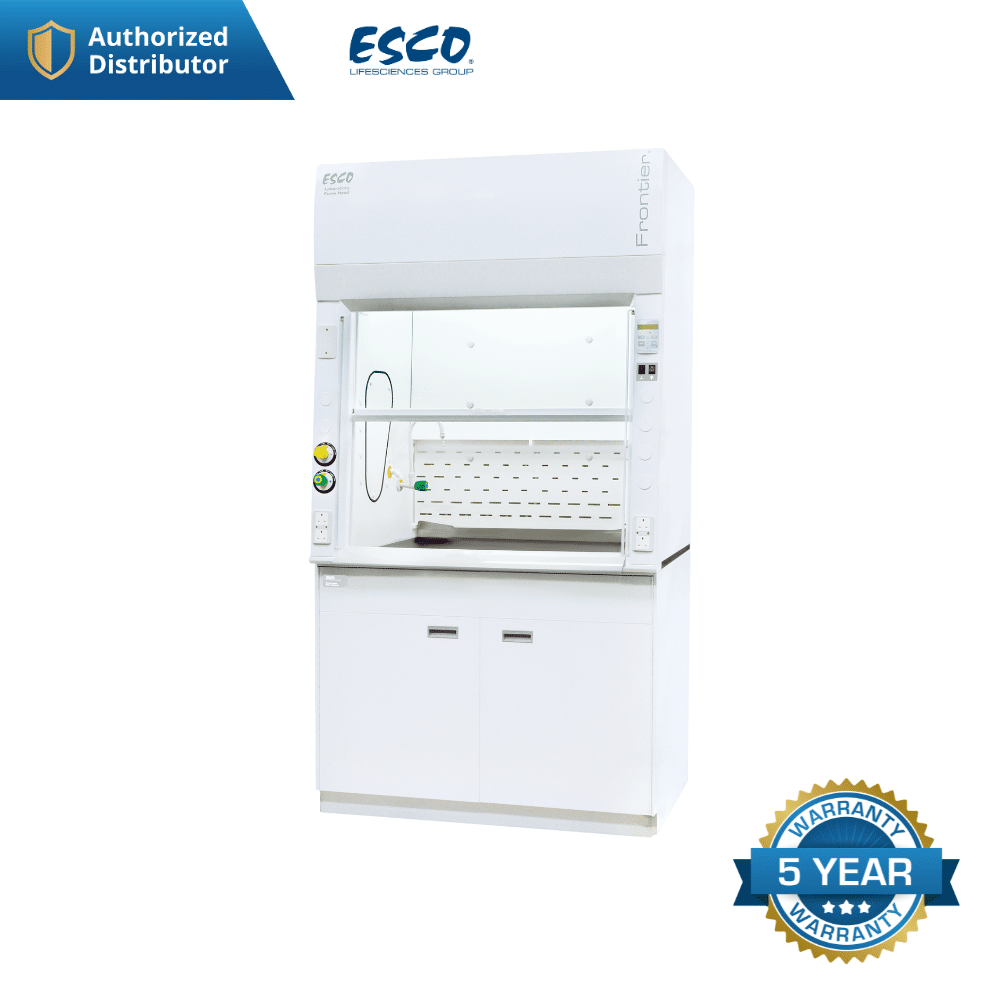

Esco Frontier® Acela Fume Hood
Not sure which configuration is right for your application? Schedule a free consultation with our technical consultants today!
Schedule a consultationProduct Description
Introducing Esco Frontier® Acela™ the world class laboratory fume hood design platform with patents and compliance to prove it. Precisely tuned aerodynamics, outstanding user safety, total systems and design flexibility, energy-efficiency, aesthetics and ergonomics- all supported by Esco’s solutions-based sales and service representatives in more than 100 countries.
Key Benefits
- ASHRAE 110 certified/ EN14175 certified
- UL Classified
- Excellent aesthetics
- 5 degree sloped front
- Unique perforated baffle design
- Superior containment at 0.3m/s
- High energy savings
Features
- Unique Hot Zone Baffles capture fumes quickly.
- The tapered fibreglass exhaust collar reduces airflow turbulence, static pressure loss, noise level and increases face velocity uniformity.
- Perfect Pitch Profile™. The gentle pitch of the hood profile enhances visibility.
- Tri-wall construction and chain-and-sprocket sash system for maximum durability.
- Sash stop limits sash movement beyond 457 mm (18″). When raised above this height, sash will automatically and gently fall back to the safe level (Esco’s CreepDown Mechanism).
- Sash keylock available to keep sash in place at full open position for equipment loading, or at full close position to restrict access into hood.
- Constant volume / high performance concept eliminates the need for complex VAV systems.
- The Frontier® Acela™ Fume Hood delivers outstanding containment (less than 0.05ppm, as manufactured) down to 60fpm face velocity at both 18″ restricted and full open sash openings, tested inhouse in accordance to the ASHRAE-110 and EN14175-3 test protocols.
- Independently certified by Tintschl Engineering, Germany, to comply with the requirements of the EN14175 fume hood test standard.
- All Frontier® Acela™ Fume Hoods include 1 water and 1 gas Enhanz™ remote-controlled fixture plumbed to the top of the hood and 2 duplex outlets standard (specify outlet code when ordering).
Technical Specifications
| Guide to Models | |||||||||||
| EFA-_D_ _W-_ | |||||||||||
| External Width | Code | External Depth | Code | Internal Liner | Code | Sash Type | Code | Color | Code | Electrical | Code |
| 1220 mm (48.0″) | 4U | 900 mm (35.4″) | D | Esco Resinate™ | R | Vertical | V | Esco White | W | 220-240 VAC, 50/60 Hz | 8 |
| 1525 mm (60.0″) | 5U | Esco Resinate Plus™ | U | Combination | C | 110-120 VAC, 50/60 Hz | 9 | ||||
| 1830 mm (72.0″) | 6U | ||||||||||
| 2440 mm (96.0″) | 8U | ||||||||||
| General Specifications, Frontier® Acela™ Fume Hood | |||||
| Model | 220-240 VAC, 50/60 Hz, 1ø |
EFA-4UDRVW-8 | EFA-5UDRVW-8 | EFA-6UDRVW-8 | EFA-8UDRVW-8 |
| EFA-4UDRCW-8 | EFA-5UDRCW-8 | EFA-6UDRCW-8 | |||
| EFA-4UDUCW-8 | EFA-5UDUCW-8 | EFA-6UDUCW-8 | EFA-8UDUVW-8 | ||
| EFA-4UDUVW-8 | EFA-5UDUVW-8 | EFA-6UDUVW-8 | |||
| 110-120 VAC, 50/60 Hz, 1ø |
EFA-4UDRVW-9 | EFA-5UDRVW-9 | EFA-6UDRVW-9 | EFA-8UDRVW-9 | |
| EFA-4UDRCW-9 | EFA-5UDRCW-9 | EFA-6UDRCW-9 | |||
| EFA-4UDUCW-9 | EFA-5UDUCW-9 | EFA-6UDUCW-9 | EFA-8UDUVW-9 | ||
| EFA-4UDUVW-9 | EFA-5UDUVW-9 | EFA-6UDUVW-9 | |||
| Nominal Size | 1.2 meter (4′) | 1.5 meter (5′) | 1.8 meter (6′) | 2.4 meter (8′) | |
| External Dimensions (W x D x H) |
Fume Hood unit only | 1220 x 900 x 1400 mm (48.0″ x 35.4″ x 55.1″) |
1525 x 900 x 1400 mm (60.0″ x 35.4″ x 55.1″) |
1830 x 900 x 1400 mm (72.0″ x 35.4″ x 55.1″) |
2440 x 900 x 1400 mm (96.1″ x 35.4″ x 55.1″) |
| With Exhaust Collar | 1220 x 900 x 1521 mm (48.0″ x 35.4″ x 59.9″) |
1525 x 900 x 1521 mm (60.0″ x 35.4″ x 59.9″) |
1830 x 900 x 1521 mm (72.0″ x 35.4″ x 59.9″) |
2440 x 900 x 1521 mm (96.1″ x 35.4″ x 59.9″) |
|
| With Fully-opened Sash | 1220 x 900 x 1603 mm (48.0″ x 35.4″ x 64.7″) |
1525 x 900 x 1603 mm (60.0″ x 35.4″ x 64.7″) |
1830 x 900 x 1603 mm (72.0″ x 35.4″ x 64.7″) |
2440 x 900 x 1603 mm (96.1″ x 35.4″ x 64.7″) |
|
| Internal Dimensions (W x D x H) |
996 x 675 x 1230 mm (39.2″ x 26.6″ x 48.4″) |
1301 x 675 x 1230 mm (51.2″ x 26.6″ x 48.4″) |
1606 x 675 x 1230 mm (63.2″ x 26.6″ x 48.4″) |
2210 x 675 x 1230 mm (87.0″ x 26.6″ x 48.4″) |
|
| Construction | Main Body | Electrogalvanized steel with Epoxy-polyester hybrid Isocide™ powder coating | |||
| Internal Liner (default) | Esco Resinate™ | ||||
| Worktop (default) | Phenolic Resin | ||||
| Sash Specifications | Sash Material | Tempered Laminated and Framed Sash Glass | |||
| Sash Configuration | Vertical or Combination | Vertical | |||
| Sloping | 5° Sloped | ||||
| Maximum Sash Opening | 740 mm (29.1″) | ||||
Technical Specifications
| Guide to Models | |||||||||||
| EFA-_D_ _W-_ | |||||||||||
| External Width | Code | External Depth | Code | Internal Liner | Code | Sash Type | Code | Color | Code | Electrical | Code |
| 1220 mm (48.0") | 4U | 900 mm (35.4") | D | Esco Resinate™ | R | Vertical | V | Esco White | W | 220-240 VAC, 50/60 Hz | 8 |
| 1525 mm (60.0") | 5U | Esco Resinate Plus™ | U | Combination | C | 110-120 VAC, 50/60 Hz | 9 | ||||
| 1830 mm (72.0") | 6U | ||||||||||
| 2440 mm (96.0") | 8U | ||||||||||
| General Specifications, Frontier® Acela™ Fume Hood | |||||
| Model | 220-240 VAC, 50/60 Hz, 1ø |
EFA-4UDRVW-8 | EFA-5UDRVW-8 | EFA-6UDRVW-8 | EFA-8UDRVW-8 |
| EFA-4UDRCW-8 | EFA-5UDRCW-8 | EFA-6UDRCW-8 | |||
| EFA-4UDUCW-8 | EFA-5UDUCW-8 | EFA-6UDUCW-8 | EFA-8UDUVW-8 | ||
| EFA-4UDUVW-8 | EFA-5UDUVW-8 | EFA-6UDUVW-8 | |||
| 110-120 VAC, 50/60 Hz, 1ø |
EFA-4UDRVW-9 | EFA-5UDRVW-9 | EFA-6UDRVW-9 | EFA-8UDRVW-9 | |
| EFA-4UDRCW-9 | EFA-5UDRCW-9 | EFA-6UDRCW-9 | |||
| EFA-4UDUCW-9 | EFA-5UDUCW-9 | EFA-6UDUCW-9 | EFA-8UDUVW-9 | ||
| EFA-4UDUVW-9 | EFA-5UDUVW-9 | EFA-6UDUVW-9 | |||
| Nominal Size | 1.2 meter (4') | 1.5 meter (5') | 1.8 meter (6') | 2.4 meter (8') | |
| External Dimensions (W x D x H) |
Fume Hood unit only | 1220 x 900 x 1400 mm (48.0" x 35.4" x 55.1") |
1525 x 900 x 1400 mm (60.0" x 35.4" x 55.1") |
1830 x 900 x 1400 mm (72.0" x 35.4" x 55.1") |
2440 x 900 x 1400 mm (96.1" x 35.4" x 55.1") |
| With Exhaust Collar | 1220 x 900 x 1521 mm (48.0" x 35.4" x 59.9") |
1525 x 900 x 1521 mm (60.0" x 35.4" x 59.9") |
1830 x 900 x 1521 mm (72.0" x 35.4" x 59.9") |
2440 x 900 x 1521 mm (96.1" x 35.4" x 59.9") |
|
| With Fully-opened Sash | 1220 x 900 x 1603 mm (48.0" x 35.4" x 64.7") |
1525 x 900 x 1603 mm (60.0" x 35.4" x 64.7") |
1830 x 900 x 1603 mm (72.0" x 35.4" x 64.7") |
2440 x 900 x 1603 mm (96.1" x 35.4" x 64.7") |
|
| Internal Dimensions (W x D x H) |
996 x 675 x 1230 mm (39.2" x 26.6" x 48.4") |
1301 x 675 x 1230 mm (51.2" x 26.6" x 48.4") |
1606 x 675 x 1230 mm (63.2" x 26.6" x 48.4") |
2210 x 675 x 1230 mm (87.0" x 26.6" x 48.4") |
|
| Construction | Main Body | Electrogalvanized steel with Epoxy-polyester hybrid Isocide™ powder coating | |||
| Internal Liner (default) | Esco Resinate™ | ||||
| Worktop (default) | Phenolic Resin | ||||
| Sash Specifications | Sash Material | Tempered Laminated and Framed Sash Glass | |||
| Sash Configuration | Vertical or Combination | Vertical | |||
| Sloping | 5° Sloped | ||||
| Maximum Sash Opening | 740 mm (29.1") | ||||
