Product Description

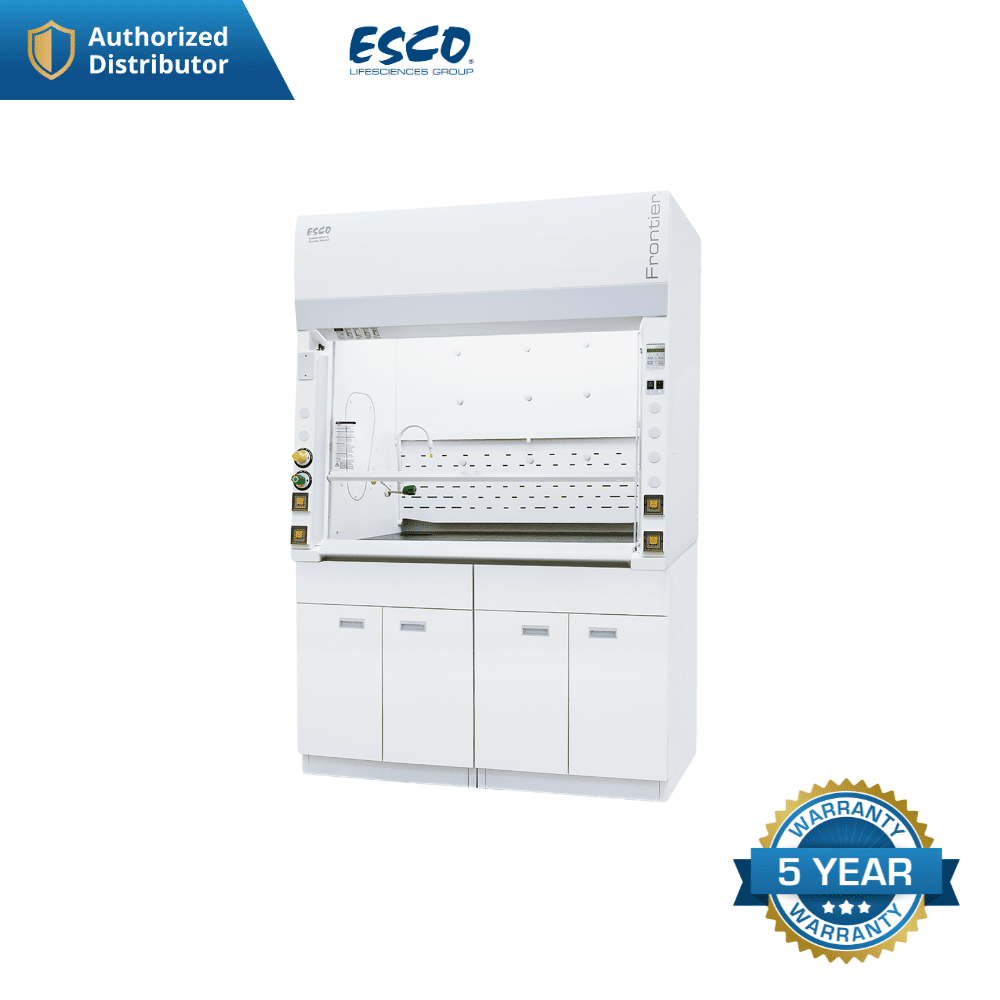

Esco Frontier® Acela™ Mining (EFA-M) is a ducted fume hood designed specifically for users in the mining industry. It has a 100mm deeper workzone to help contain chemical splashes and spills from highly corrosive chemicals.
Each EFA-M Fume Hood comes standard with
- 1 x Water Enhanz™ Remote Controlled Fixture Plumbed to the Top
- 1 x Gas Enhanz™ Remote Controlled Fixture Plumbed to the Top
- 4 x Single Electrical Outlet with Splash Proof Cover
Features
- Tri-wall construction and chain-and-sprocket chain system for maximum robustness
- UL 1805 approved Esco Resinate plus internal liner
- Highly chemical resistant Ceramic worktop
- 6 mm tempered safety glass sash with lamination
- Perforated lower baffle system which improves overall containment of the fume hood
- Optional Sentinel XLTM Digital Airflow monitor provides real time face velocity display and alarms in unsafe conditions.
Generous Inner Work Depth

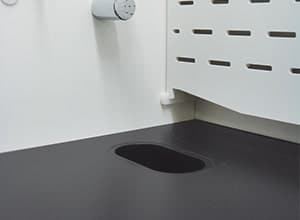

Ceramic Worktop

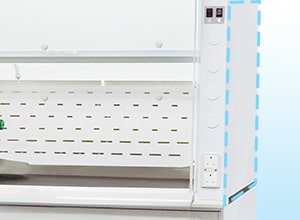

Tri-Wall Construction
Technical Specifications
Guide to Models, Frontier® Acela™ M Series | |||||||||||
EFA-_MU_W-_ | |||||||||||
External Width | Code | External Depth | Code | Internal Liner | Code | Sash Type | Code | Color | Code | Electrical | Code |
1220 mm (48.0″) | 4U | 1000 mm (35.4″) | M | Esco Resinate Plus | U | Vertical | V | Esco White | W | 220-240 VAC, 50/60 Hz | 8 |
1525 mm (60.0″) | 5U | Combination | C | 110-120 VAC, 50/60 Hz | 9 | ||||||
1830 mm (72.0″) | 6U | ||||||||||
2440 mm (96.0″) | 8U |
General Specifications, Frontier® Acela™ M Series | |||||
Model | 220-240 VAC, 50/60 Hz, 1ø |
EFA-4UMUVW-8 | EFA-5UMUVW-8 | EFA-6UMUVW-8 | EFA-8UMUVW-8 |
EFA-4UMUCW-8 | EFA-5UMUCW-8 | EFA-6UMUCW-8 | |||
110-120 VAC, 50/60 Hz, 1ø |
EFA-4UMUVW-9 | EFA-5UMUVW-9 | EFA-6UMUVW-9 | EFA-8UMUVW-9 | |
EFA-4UMUCW-9 | EFA-5UMUCW-9 | EFA-6UMUCW-9 | |||
Nominal Size | 1.2 meter (4′) | 1.5 meter (5′) | 1.8 meter (6′) | 2.4 meter (8′) | |
External Dimensions (W x D x H) |
Fume Hood unit only | 1220 x 1000 x 1400 mm (48.0″ x 39.4″ x 55.1″) |
1525 x 1000 x 1400 mm (60.0″ x 39.4″ x 55.1″) |
1830 x 1000 x 1400 mm (72.0″ x 39.4″ x 55.1″) |
2440 x 1000 x 1400 mm (96.1″ x 39.4″ x 55.1″) |
With Exhaust Collar | 1220 x 1000 x 1521 mm (48.0″ x 39.4″ x 59.9″) |
1525 x 1000 x 1521 mm (60.0″ x 39.4″ x 59.9″) |
1830 x 1000 x 1521 mm (72.0″ x 39.4″ x 59.9″) |
2440 x 1000 x 1521 mm (96.1″ x 39.4″ x 59.9″) |
|
With Fully-opened Sash | 1220 x 1000 x 1603 mm (48.0″ x 39.4″ x 64.7″) |
1525 x 1000 x 1603 mm (60.0″ x 39.4″ x 64.7″) |
1830 x 1000 x 1603 mm (72.0″ x 39.4″ x 64.7″) |
2440 x 1000 x 1603 mm (96.1″ x 39.4″ x 64.7″) |
|
Internal Dimensions (W x D x H) |
996 x 775 x 1230 mm (39.2″ x 30.5″ x 48.4″) |
1301 x 775 x 1230 mm (51.2″ x 30.5″ x 48.4″) |
1606 x 775 x 1230 mm (63.2″ x 30.5″ x 48.4″) |
2210 x 775 x 1230 mm (87.0″ x 30.5″ x 48.4″) |
|
Construction | Main Body | Electrogalvanized steel with Epoxy-polyester hybrid Isocide™ powder coating | |||
Internal Liner (default) | Esco Resinate™ Plus | ||||
Worktop (default) | Ceramic Worktop | ||||
Sash Specification | Sash Material | Tempered Laminated and Framed Sash Glass | |||
Sash Configuration | Vertical (for units EFA-_MUVW-8 and EFA-_MUVW-9) Combination (for units EFA-_MUCW-8 and EFA-_MUCW-9) |
||||
Sloping | 5° Sloped | ||||
Maximum Sash Opening (two vertical sash opening) |
740 mm (29.1″) |
