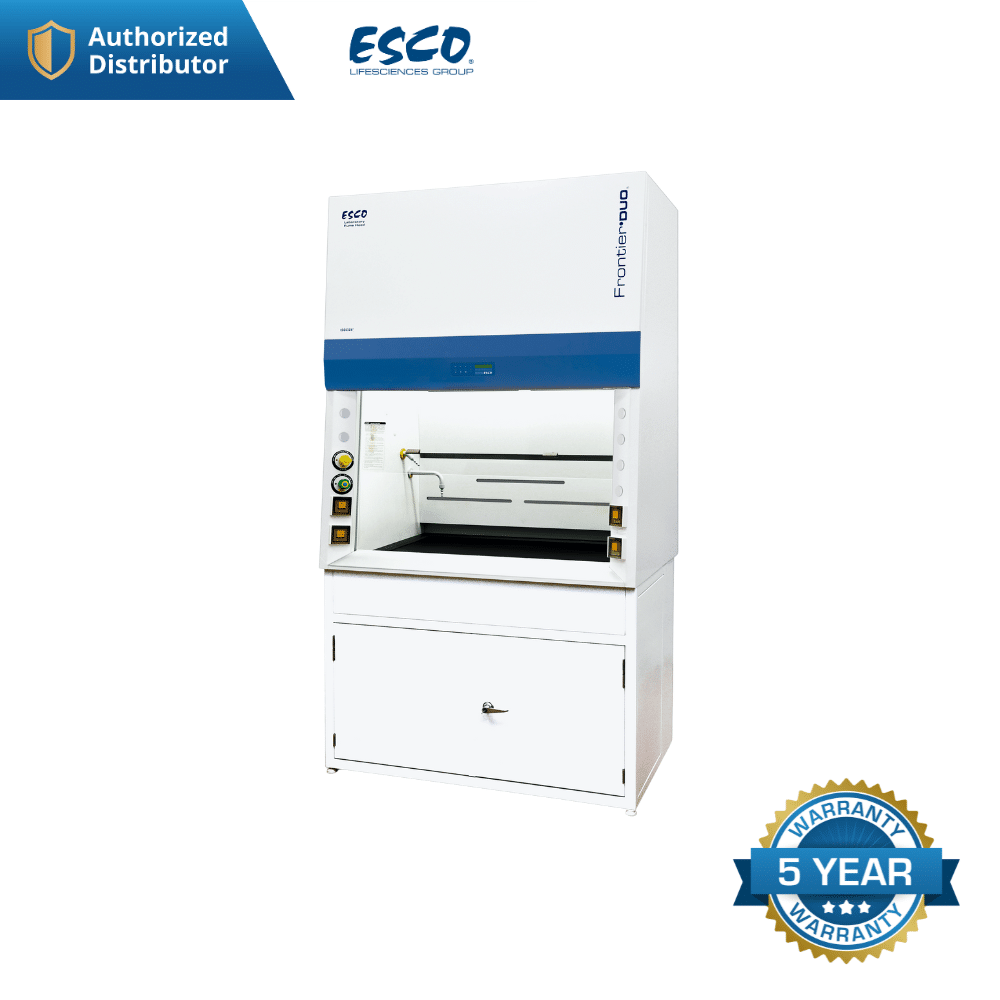

Esco Frontier® Duo Series Fume Hood
Not sure which configuration is right for your application? Schedule a free consultation with our technical consultants today!
Schedule a consultationProduct Description
The Esco Frontier® DuoTM Hood offers a solution representing design and engineering innovations that are at the forefront of fume hood technology. It provides superior containment of noxious chemical fumes at a face velocity of 0.5m/s while addressing worker comfort through its unique ergonomic design.
Key Benefits
- ASHRAE 110 certified
- UL classified
- Clean looking aesthetics
- 8 degree sloped front of sash
Features
- A fully configurable SentinelTM Silver Microprocessor control with audible and visual alarms for unsafe conditions.
- Instant-start electronically ballasted lighting system (>900lux) that is flicker-free and isolated from the work zone.
- Integral fluorescent lighting mounted out of the air stream for better airflow uniformity.
- Electrical system designed to meet the latest international standards for safety.
- Internal liner is made of phenolic resin laminates with no exposed screws or metal to prevent corrosion.
- Black colored phenolic resin worktop surface resists staining.
- IsocideTM Antimicrobial coating on the cabinet prevents surface contamination and inhibits bacterial growth.
- Has a laminated vertical-rising sash with fail- safe counter-balanced mechanism
- Standard service fixtures include 1 water fixture, 1 gas fixture and 2 electrical outlets.
Technical Specifications
| Guide to Models | |||||
| EFD-_ _ _ | |||||
| External Width | Code | Controller | Code | Electrical | Code |
| 1200 mm (47.2″) | 4 | Rocket Switches | A | 220-240 VAC, 50/60 Hz | 8 |
| 1500 mm (59.0″) | 5 | Sentinal™ Silver Microprocessor Control System | B | 110-120 VAC, 50/60 Hz | 9 |
| 1800 mm (70.9″) | 6 | ||||
| 2400 mm (94.5″) | 8 | ||||
| General Specifications, Frontier® Duo™ Fume Hood | |||||
| Model | 220-240 VAC, 50/60 Hz, 1ø |
EFD-4A-8 | EFD-5A-8 | EFD-6A-8 | EFD-8A-8 |
| EFD-4B-8 | EFD-5B-8 | EFD-6B-8 | EFD-8B-8 | ||
| 110-120 VAC, 50/60 Hz, 1ø |
EFD-4A-9 | EFD-5A-9 | EFD-6A-9 | EFD-8A-9 | |
| EFD-4B-9 | EFD-5B-9 | EFD-6B-9 | EFD-8B-9 | ||
| Nominal Size | 1.2 meter (4′) | 1.5 meter (5′) | 1.8 meter (6′) | 2.4 meter (8′) | |
| External Dimensions (W x D x H) |
1200 x 793 x 1500 mm (47.2″ x 31.2″ x 59.0″) |
1500 x 793 x 1500 mm (59.0″ x 31.2″ x 59.0″) |
1800 x 793 x 1500 mm (70.9″ x 31.2″ x 59.0″) |
2400 x 793 x 1500 mm (94.5″ x 31.2″ x 59.0″) |
|
| Internal Work Area Dimensions (W x D x H) |
1000 x 592 x 1259 mm (39.4″ x 23.3″ x 49.6″) |
1300 x 592 x 1259 mm (51.2″ x 23.3″ x 49.6″) |
1600 x 592 x 1259 mm (63.0″ x 23.3″ x 49.6″) |
2200 x 592 x 1259 mm (86.1″ x 23.3″ x 49.6″) |
|
| Construction | Main Body | EG steel with oven-baked Epoxy-polyester hybrid Isocide™ powder coating | |||
| Internal Liner | Esco Resinate phenolic resin laminates | ||||
| Worktop | Phenolic Resin | ||||
| Sash Specifications | Sash Material | Tempered Laminated and Framed Sash Glass | |||
| Sash Configuration | Vertical | ||||
| Sloping | 8° slope | ||||
| Maximum Sash Opening | 550 mm (21.7″) | ||||
Technical Specifications
| Guide to Models | |||||
| EFD-_ _ _ | |||||
| External Width | Code | Controller | Code | Electrical | Code |
| 1200 mm (47.2") | 4 | Rocket Switches | A | 220-240 VAC, 50/60 Hz | 8 |
| 1500 mm (59.0") | 5 | Sentinal™ Silver Microprocessor Control System | B | 110-120 VAC, 50/60 Hz | 9 |
| 1800 mm (70.9") | 6 | ||||
| 2400 mm (94.5") | 8 | ||||
| General Specifications, Frontier® Duo™ Fume Hood | |||||
| Model | 220-240 VAC, 50/60 Hz, 1ø |
EFD-4A-8 | EFD-5A-8 | EFD-6A-8 | EFD-8A-8 |
| EFD-4B-8 | EFD-5B-8 | EFD-6B-8 | EFD-8B-8 | ||
| 110-120 VAC, 50/60 Hz, 1ø |
EFD-4A-9 | EFD-5A-9 | EFD-6A-9 | EFD-8A-9 | |
| EFD-4B-9 | EFD-5B-9 | EFD-6B-9 | EFD-8B-9 | ||
| Nominal Size | 1.2 meter (4') | 1.5 meter (5') | 1.8 meter (6') | 2.4 meter (8') | |
| External Dimensions (W x D x H) |
1200 x 793 x 1500 mm (47.2" x 31.2" x 59.0") |
1500 x 793 x 1500 mm (59.0" x 31.2" x 59.0") |
1800 x 793 x 1500 mm (70.9" x 31.2" x 59.0") |
2400 x 793 x 1500 mm (94.5" x 31.2" x 59.0") |
|
| Internal Work Area Dimensions (W x D x H) |
1000 x 592 x 1259 mm (39.4" x 23.3" x 49.6") |
1300 x 592 x 1259 mm (51.2" x 23.3" x 49.6") |
1600 x 592 x 1259 mm (63.0" x 23.3" x 49.6") |
2200 x 592 x 1259 mm (86.1" x 23.3" x 49.6") |
|
| Construction | Main Body | EG steel with oven-baked Epoxy-polyester hybrid Isocide™ powder coating | |||
| Internal Liner | Esco Resinate phenolic resin laminates | ||||
| Worktop | Phenolic Resin | ||||
| Sash Specifications | Sash Material | Tempered Laminated and Framed Sash Glass | |||
| Sash Configuration | Vertical | ||||
| Sloping | 8° slope | ||||
| Maximum Sash Opening | 550 mm (21.7") | ||||
