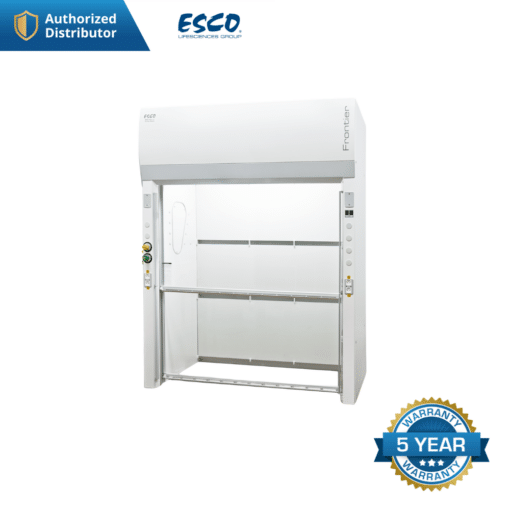

Esco Frontier® Floor Mounted™ Fume Hood
Not sure which configuration is right for your application? Schedule a free consultation with our technical consultants today!
Schedule a consultationProduct Description
Esco Frontier® Floor Mounted™ Fume Hood is designed to provide comfortable space when users have to deal with large apparatus and hazardous containers. This fume hood is built with horizontal or vertical sliding sashes for ease of access when transporting apparatus into the hood. Although this type of fume hood is sometimes denoted as a walk-in fume hood, it is a misnomer. The user must not enter the hood while an activity generating hazardous fumes exists or when suspected concentration of fumes exists inside the chamber.
Key Benefits
- ASHRAE 110 certified / EN14175 certified
- UL classified
- Excellent aesthetics
- 5 degree sloped front
- Superior containment at 0.3m/s
- High energy savings
Each EFF ducted fume hood comes standard with
- 1 x Water Enhanz™ Remote Controlled Fixture Plumbed to the Top
- 1 x Gas Enhanz™ Remote Controlled Fixture Plumbed to the Top
- 4 x Single Electrical Outlet with Splash Proof Cover
Features
Superstructure
- Tri-wall construction for maximum robustness.
- Chain and Sprocket Sash support system.
- Hood lighting is pre-wired. Lighting is electronically ballasted, energy efficient, instant start. Typical light intensity on work surface is > 1076 lux in zero ambient conditions.
Safety Features
- Shaping vanes increase airflow “sweep” at the critical area at the sidewall to improve containment, especially when laboratory personnel walk fast in front of the hood.
Serviceability
- Removable baffle system allows for thorough cleaning inside the hood.
- Chain and sprocket system requires minimal service.
Safety Certified and Tested
All Esco fume hoods are manufactured for the most demanding laboratory applications.
- Each Frontier® Floor Mounted™ Fume Hood is tested to comply with ASHRAE 110:1995 Standard.
- Sash is clearly labeled with operating instructions and illustrations.
Technical Specifications
| Guide to Models | |||||||||||
| EFF-_B_ _W-_ | |||||||||||
| External Width | Code | External Depth | Code | Internal Liner | Code | Sash Type | Code | Color | Code | Electrical | Code |
| 1220 mm (48.0″) | 4U | 965 mm (38.0″) | D | Resinate | R | Vertical | V | Esco White | W | 220-240 VAC, 50/60 Hz | 8 |
| 1525 mm (60.0″) | 5U | Resinate Plus | U | Horizontal | H | 110-120 VAC, 50/60 Hz | 9 | ||||
| 1830 mm (72.0″) | 6U | ||||||||||
| 2440 mm (96.0″) | 8U | ||||||||||
| General Specifications, Frontier® Floor Mounted™ Fume Hoods | |||||
| Model | 220-240 VAC, 50/60 Hz, 1ø |
EFF-4UBRVW-8 | EFF-5UBRVW-8 | EFF-6UBRVW-8 | EFF-8UBRVW-8 |
| EFF-6UBRHW-8 | EFF-8UBRHW-8 | ||||
| EFF-4UBUVW-8 | EFF-5UBUVW-8 | EFF-6UBUVW-8 | EFF-8UBUVW-8 | ||
| EFF-6UBUHW-8 | EFF-8UBUHW-8 | ||||
| 110-120 VAC, 50/60 Hz, 1ø |
EFF-4UBRVW-9 | EFF-5UBRVW-9 | EFF-6UBRVW-9 | EFF-8UBRVW-9 | |
| EFF-6UBRHW-9 | EFF-8UBRHW-9 | ||||
| EFF-4UBUVW-9 | EFF-5UBUVW-9 | EFF-6UBUVW-9 | EFF-8UBUVW-9 | ||
| EFF-6UBUHW-9 | EFF-8UBUHW-9 | ||||
| Nominal Size | 1.2 meter (4′) | 1.5 meter (5′) | 1.8 meter (6′) | 2.4 meter (8′) | |
| External Dimensions (W x D x H) |
Fume Hood unit only | 1220 x 965 x 2360 mm (48.0″ x 38.0″ x 92.9″) |
1525 x 965 x 2360 mm (60.0″ x 38.0″ x 92.9″) |
1830 x 965 x 2360 mm (72.0″ x 38.0″ x 92.9″) |
2440 x 965 x 2360 mm (96.1″ x 38.0″ x 92.9″) |
| With Exhaust Collar | 1220 x 965 x 2405 mm (48.0″ x 38.0″ x 94.7″) |
1525 x 965 x 2405 mm (60.0″ x 38.0″ x 94.7″) |
1830 x 965 x 2405 mm (72.0″ x 38.0″ x 94.7″) |
2440 x 965 x 2405 mm (96.1″ x 38.0″ x 94.7″) |
|
| With Fully opened Sash | 1220 x 965 x 2688 mm (48.0″ x 38.0″ x 106.0″) |
1525 x 965 x 2688 mm (60.0″ x 38.0″ x 106.0″) |
1830 x 965 x 2688 mm (72.0″ x 38.0″ x 106.0″) |
2440 x 965 x 2688 mm (96.1″ x 38.0″ x 106.0″) |
|
| Internal Dimensions (W x D x H) |
996 x 710 x 2140 mm (39.2″ x 28.0″ x 84.3″) |
1301 x 710 x 2140 mm (51.2″ x 28.0″ x 84.3″) |
1606 x 710 x 2140 mm (63.2″ x 28.0″ x 84.3″) |
2216 x 710 x 2140 mm (87.2″ x 28.0″ x 84.3″) |
|
| Construction | Main Body | Electrogalvanized steel with Epoxy-polyester hybrid Isocide™ powder coating | |||
| Internal Liner (default) | Esco Resinate™ | ||||
| Worktop | No worktop(Option to purchase low height base cabinet with worktop) | ||||
| Sash Specifications | Sash Material | Tempered Laminated and Framed Sash Glass | |||
| Sash Configuration | Vertical | Vertical/Horizontal | |||
| Maximum Sash Opening (two vertical sash up) | 1647 mm (64.8″) | ||||
Technical Specifications
| Guide to Models | |||||||||||
| EFF-_B_ _W-_ | |||||||||||
| External Width | Code | External Depth | Code | Internal Liner | Code | Sash Type | Code | Color | Code | Electrical | Code |
| 1220 mm (48.0") | 4U | 965 mm (38.0") | D | Resinate | R | Vertical | V | Esco White | W | 220-240 VAC, 50/60 Hz | 8 |
| 1525 mm (60.0") | 5U | Resinate Plus | U | Horizontal | H | 110-120 VAC, 50/60 Hz | 9 | ||||
| 1830 mm (72.0") | 6U | ||||||||||
| 2440 mm (96.0") | 8U | ||||||||||
| General Specifications, Frontier® Floor Mounted™ Fume Hoods | |||||
| Model | 220-240 VAC, 50/60 Hz, 1ø |
EFF-4UBRVW-8 | EFF-5UBRVW-8 | EFF-6UBRVW-8 | EFF-8UBRVW-8 |
| EFF-6UBRHW-8 | EFF-8UBRHW-8 | ||||
| EFF-4UBUVW-8 | EFF-5UBUVW-8 | EFF-6UBUVW-8 | EFF-8UBUVW-8 | ||
| EFF-6UBUHW-8 | EFF-8UBUHW-8 | ||||
| 110-120 VAC, 50/60 Hz, 1ø |
EFF-4UBRVW-9 | EFF-5UBRVW-9 | EFF-6UBRVW-9 | EFF-8UBRVW-9 | |
| EFF-6UBRHW-9 | EFF-8UBRHW-9 | ||||
| EFF-4UBUVW-9 | EFF-5UBUVW-9 | EFF-6UBUVW-9 | EFF-8UBUVW-9 | ||
| EFF-6UBUHW-9 | EFF-8UBUHW-9 | ||||
| Nominal Size | 1.2 meter (4') | 1.5 meter (5') | 1.8 meter (6') | 2.4 meter (8') | |
| External Dimensions (W x D x H) |
Fume Hood unit only | 1220 x 965 x 2360 mm (48.0" x 38.0" x 92.9") |
1525 x 965 x 2360 mm (60.0" x 38.0" x 92.9") |
1830 x 965 x 2360 mm (72.0" x 38.0" x 92.9") |
2440 x 965 x 2360 mm (96.1" x 38.0" x 92.9") |
| With Exhaust Collar | 1220 x 965 x 2405 mm (48.0" x 38.0" x 94.7") |
1525 x 965 x 2405 mm (60.0" x 38.0" x 94.7") |
1830 x 965 x 2405 mm (72.0" x 38.0" x 94.7") |
2440 x 965 x 2405 mm (96.1" x 38.0" x 94.7") |
|
| With Fully opened Sash | 1220 x 965 x 2688 mm (48.0" x 38.0" x 106.0") |
1525 x 965 x 2688 mm (60.0" x 38.0" x 106.0") |
1830 x 965 x 2688 mm (72.0" x 38.0" x 106.0") |
2440 x 965 x 2688 mm (96.1" x 38.0" x 106.0") |
|
| Internal Dimensions (W x D x H) |
996 x 710 x 2140 mm (39.2" x 28.0" x 84.3") |
1301 x 710 x 2140 mm (51.2" x 28.0" x 84.3") |
1606 x 710 x 2140 mm (63.2" x 28.0" x 84.3") |
2216 x 710 x 2140 mm (87.2" x 28.0" x 84.3") |
|
| Construction | Main Body | Electrogalvanized steel with Epoxy-polyester hybrid Isocide™ powder coating | |||
| Internal Liner (default) | Esco Resinate™ | ||||
| Worktop | No worktop(Option to purchase low height base cabinet with worktop) | ||||
| Sash Specifications | Sash Material | Tempered Laminated and Framed Sash Glass | |||
| Sash Configuration | Vertical | Vertical/Horizontal | |||
| Maximum Sash Opening (two vertical sash up) | 1647 mm (64.8") | ||||
