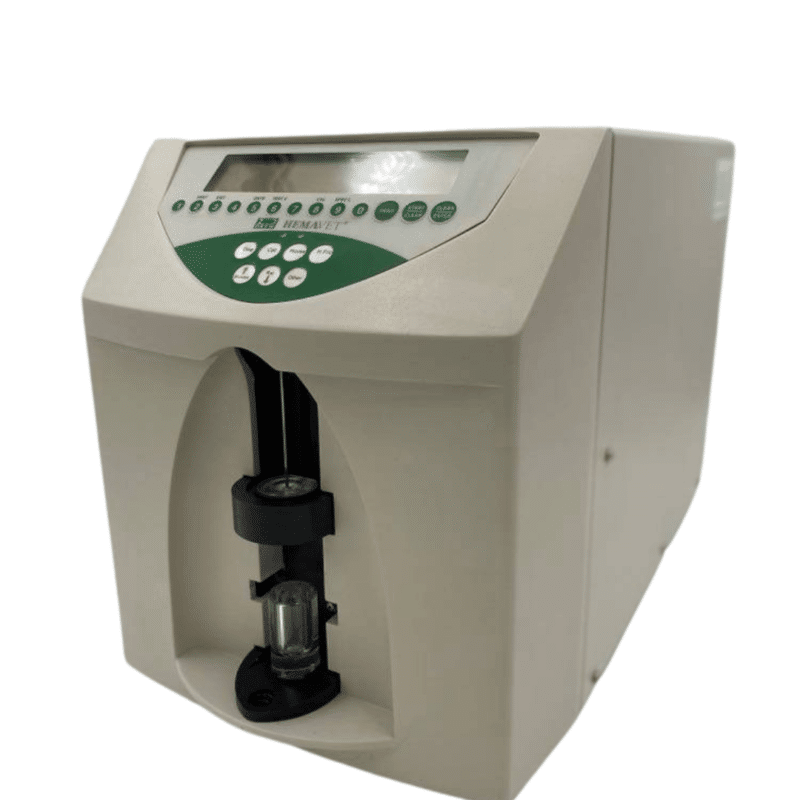

Drew Scientific Hemavet 950
Not sure which configuration is right for your application? Schedule a free consultation with our technical consultants today!
Schedule a consultation Have One To Sell?Product Description
The Hemavet 950 from Drew Scientific is the fast new veterinary multi-species Hematology system which can provide total quality results right in your office. The Hematology unit comes with an array of features designed to accommodate your multipurpose veterinary hematology needs.
Drew Scientific is the original equipment manufacturer (OEM) of the HEMAVET, a veterinary multi-species hematology system used in university research and busy veterinary laboratory settings. It’s favored in the market for its accuracy and precision.
The HEMAVET Multi-species Hematology System incorporates a proprietary patented Focused Flow (TM) design. This compact powerhouse uses a positive displacement syringe system which delivers cell-by-cell analysis occurring over an extended operating range, ensuring accuracy even for species with very high cell counts. It also delivers sample volume metering via the unique syringe system, ensuring the precision of results.
The HEMAVET automated multi-species hematology analyzer performs a variety of quantitative analysis for in-vitro diagnostics of hematological parameters. It has six dedicated pre-programmed species keys; available species include: dog, goat, pig, mouse, rat and HFRO (human for research only). Additional species can be run on the ‘OTHER’ key.
Features
- 20 parameters, including platelets
- Fast – 26 samples per hour
- Complete 5 part WBC differential
- Designed specifically for veterinary medicine
- Patented Expectation Maximisation software
- Fully automated, whole blood open vials
- Simple to operate
- Low maintenance, due to Focused Flow® technology
- Optimized Reagents and Controls
- Efficient, cost effective patient management
Parameters
- WBC, NE#, NE%, LY#, LY%, MO#, MO%, EO#, EO%, BA#, BA%
- RBC, Hb, HCT, MCV, MCH, MCHC, RDW
- plus additional flagging for NRBC#, NRBC%, see note
- Platelet Count, MPV
- 3D cytograms : WBC subpopulations, RBCs, PLTs
Note : Differential parameters and abnormal flagging not available with all Species
Species
- Up to Six Dedicated Pre-programmed Species Keys.
- (Additional species can be run on ‘OTHER’ key)note1
Available Species:
- Bison, Calfnote2, Camel², Cat, Cow, Deer², Dog, Elephant², Elk4, Ferret², Foal², Goat², Guinea Pig², Horse, Llama², Monkey, Pig4, Rabbit4, Sheep4
- Note 1 : Differential parameters and flagging not available with “OTHER” key
- Note 2 : Differential parameters and abnormal flagging not available with all Species
- Note 3 : Extended MCV linearity range (10 to 600 fL) available for Exotic Species Packages, eg Goat, Llama
- Note 4 : RBC and PLT Cytograms not available with all Species
Reagent Kit:
Reagent Kit optimized for the Hemavet 950. This kit yields approximately 135 billable tests per reagent kit when running 15 samples per day.
Controls:
Dog Cat Mouse and Horse Controls are available.
Calibration:
Drew Scientific recommends running a control each day. The calibration should be reviewed every six months. Adjust as necessary. Review after replacing worn or damaged components.
Precision |
|||
| Level | Units | CV | |
| >WBC | 10.0 | x 10³ cells/µL | < 3.0% |
| >RBC | 7.0 | x 106 cells/µL | < 3.0% |
| >Hb | 14 | g/dL | < 2.0 % |
| >MCV | 60 | fL | < 1.0 % |
| >PLT | 500 | x 10³ cells/µL | < 5.0 % |
| >NE# | 6.0 | x 10³ cells/µL | < 6.0 % |
| >LY# | 6.0 | x 10³ cells/µL | < 6.0 % |
| >EO# | 2.0 | x 10³ cells/µL | < 12.0 % |
| Linearity | |||
| Range | Units | ||
| >WBC | 0.1 to 200.0 | x 10³ cells/µL | |
| >RBC | 0.01 to 20.0 | x 106 cells/µL | |
| >Hb | 0.1 to 35 | g/dL | |
| >MCV | 30 to 300 | fL | |
| >PLT | 1 to 4000 | x 10³ cells/µL | |
| >NE% | 0.1 to 99.9% | ||
| >LY% | 0.1 to 99.9% | ||
| >EO% | 0.1 to 99.9% |
Let our team of experts help you find the perfect equipment for your application and budget, schedule a free meeting now:
Operational Specification
| Sample Delivery | Automated open vial sample delivery. Automated probe wiping. One touch walk-away sample processing. |
| Sample Volume | 20 µL whole blood Sample. |
| Throughput | Approximately 26 samples per hour. |
| Data Input / Output | Touch Keypad with Six Dedicated Species Keys and one ‘OTHER’ key LCD display. Customized report (8.5″” x 11″”) with exclusive 3-D cytograms of WBC and RBC subpopulations. RS232 port for external computer interface. |
| Patient Storage | Internal data Storage for last 50 samples run. |
| Flagging | Automatic distribution and morphological flagging. Hematologic abnormality charts indicating Mild Moderate and Severe conditions. |
| System | |
| Dimensions | Height : 12″” (30.5 cm) Width : 10.5″” (27 cm) Depth : 20″” (51cm) |
| Weight | 25.5 lbs (11.6 Kg) |
| Operating Temperature | 62ºF to 90F (17C to 32C) |
| Voltage | 95 to 132 VAC or 180 to 264 VAC 47 to 63 Hz |
Operational Specification
| Sample Delivery | Automated open vial sample delivery. Automated probe wiping. One touch walk-away sample processing. |
| Sample Volume | 20 µL whole blood Sample. |
| Throughput | Approximately 26 samples per hour. |
| Data Input / Output | Touch Keypad with Six Dedicated Species Keys and one 'OTHER' key LCD display. Customized report (8.5"" x 11"") with exclusive 3-D cytograms of WBC and RBC subpopulations. RS232 port for external computer interface. |
| Patient Storage | Internal data Storage for last 50 samples run. |
| Flagging | Automatic distribution and morphological flagging. Hematologic abnormality charts indicating Mild Moderate and Severe conditions. |
| System | |
| Dimensions | Height : 12"" (30.5 cm) Width : 10.5"" (27 cm) Depth : 20"" (51cm) |
| Weight | 25.5 lbs (11.6 Kg) |
| Operating Temperature | 62ºF to 90F (17C to 32C) |
| Voltage | 95 to 132 VAC or 180 to 264 VAC 47 to 63 Hz |
Replacement Parts & Accessories
To view available parts for this instrument and instruments like it, click here.
Our parts and accessories inventory is constantly changing. Don't see what you're looking for? Give us a call, we'll be happy to help.
Service
Service Agreements |
Silver |
Gold |
First Class Ship & Fix |
Economy Ship & Fix |
| Preventative Maintenance Visit | 1 Preventative Maintenance Visit per Year | 1 Preventative Maintenance Visit per Year | ||
| Parts Covered |  |
|
||
| Labor Covered | |
|
|
|
| Unlimited Remote Tech Support | |
|
|
|
| Depot Repair | |
|
||
| Depot Preventative Maintenance | |
