GPC EASY-LAB™ Lab Scale Fermentors & Bioreactors

Not sure which configuration is right for your application? Schedule a free consultation with our technical consultants today!

Description
Reviews (0)

Product Description

250ml – 10L
CFR21 Part 11 & cGMP Compliant
Made in France
Exclusively available at GMI
Completely Customizable, Cost-efficient, Intuitive Software

Through its standard design, the EASY-LAB™ system is economical and designed for simple laboratory operations. It is equipped with all the features required for controlling your cultures. The highly intuitive BIOWEB™ monitoring software helps you to effectively optimize your process parameters to get quick and significant results.

Screenshot 2023 03 07 11.30.19 AM 1400x796 1 - GPC EASY-LAB™ Lab Scale Fermentors & Bioreactors

Screenshot 2023 03 07 11.27.00 AM - GPC EASY-LAB™ Lab Scale Fermentors & Bioreactors

Screenshot 2023 03 07 11.28.56 AM - GPC EASY-LAB™ Lab Scale Fermentors & Bioreactors

The Controller

The Pro-Lab Controller Series offers 3 configurations, from basic needs to highly automated solutions: Easy lab / Mini Pro-Lab and Pro-Lab

Benefits

Powerful and Intuitive
Standard components for easy maintenance
Flexible and evolutive
Intuitive ( become an Expert in few hours)

Up to 4 peristaltic pumps per vessel,

Up to 6 mass flow controllers and 4 rotameters per vessel

Gas injected on the surface and/or in the vessel,

3 temperature control modes

double jacketed vessel
heating/cooling plate
heating/cooling blanket

The Software

Smart and powerful user interface
Designed to comply with the most demanding processes
Ergonomic and intuitive operator interface

Screenshot 2023 05 22 160426 - GPC EASY-LAB™ Lab Scale Fermentors & Bioreactors

Up to 6 bioreactors
User management (CFR21 part.11)
Easy maintenance
Process supervision and automation: thanks to the sequences module (editing and creating recipes)
Sophisticated control strategies for aeration, additions and harvests
Real time or retrospective visualization of culture data in graph or table form
Development of mathematical formulae that can be used in process control strategies
Quick troubleshooting
Quick and mistake-proof connections
Components recognized among industrial standards
Easy access cabinet
History of sensor calibration data
Remote control of the equipment
Batch saving of all data in SQL database (csv)
Preventive and corrective maintenance contracts

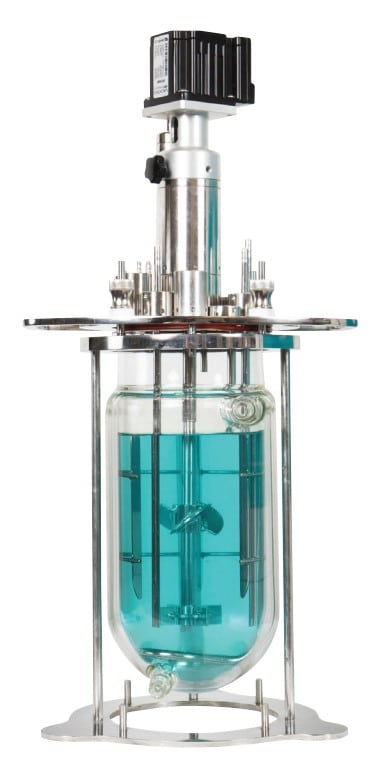

The Vessel

Materials

Borosilicate glass vessel
316L stainless steel (head-plate and the support)
Silicone gasket

Screenshot 2023 05 22 163449 - GPC EASY-LAB™ Lab Scale Fermentors & Bioreactors

Ports and head-plate (fully configurable)

Condenser: 6×8 mm gas outlet
Septum
Probes: pH, pO2 (PG13.5 threading)
Sparger
Surface aeration
Antifoam
Temperature
3 nozzles
Dip tube: 4×6 mm, 6×8 mm or 10×12 mm
Sampling: 4×6 mm or 6×8 mm
Additional port

The agitation mechanism comprises

a driving device (motor)
a shaft guiding system (bearings)
a shaft and turbines (4 types available)

Pro-Lab Bioreactor

Entirely re-designed to be simple to use and intuitive, our bioreactor can control 1 or 2 vessels.

Tailor-made in France, Pro-Lab is customizable according to your specifications. delivered fast thanks to our vertical integration and built with the finest components, ensuring robustness and cost-efficiency.

Up to 8 parameters can be controlled per vessel
