from 10L to +600L
- Double jacketed in Stainless Steel 316 L
- Electropolished Ra ≤ 0.8 μm
- Take-down head plate automated or manual

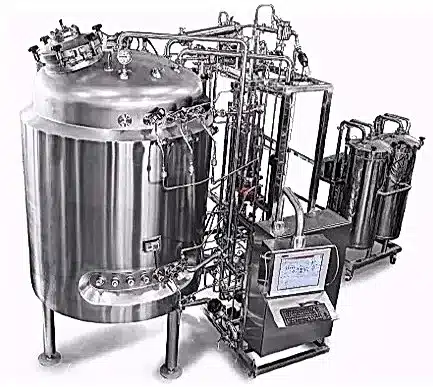

GPC PRO-LAB™ Industrial Scale Fermentors & Bioreactors
Not sure which configuration is right for your application? Schedule a free consultation with our technical consultants today!
Schedule a consultationProduct Description
- 2 Year Full Factory Warranty
- CFR21 Part 11 & cGMP Compliant
- Made in France
- Exclusively available at GMI
- Completely Customizable, Cost-efficient, Intuitive Software
Switch from the laboratory to production scale with ease, thanks to this highly flexible equipment that is designed to prepare for and anticipate scale changes.
The Controller
Benefits
- Powerful and Intuitive
- Standard components for easy maintenance
- Flexible and evolutive
- Intuitive ( become an Expert in few hours)
Up to 4 peristaltic pumps per vessel,
Up to 6 mass flow controllers and 4 rotameters per vessel
Gas injected on the surface and/or in the vessel,
3 temperature control modes
- double jacketed vessel
- heating/cooling plate
- heating/cooling blanket

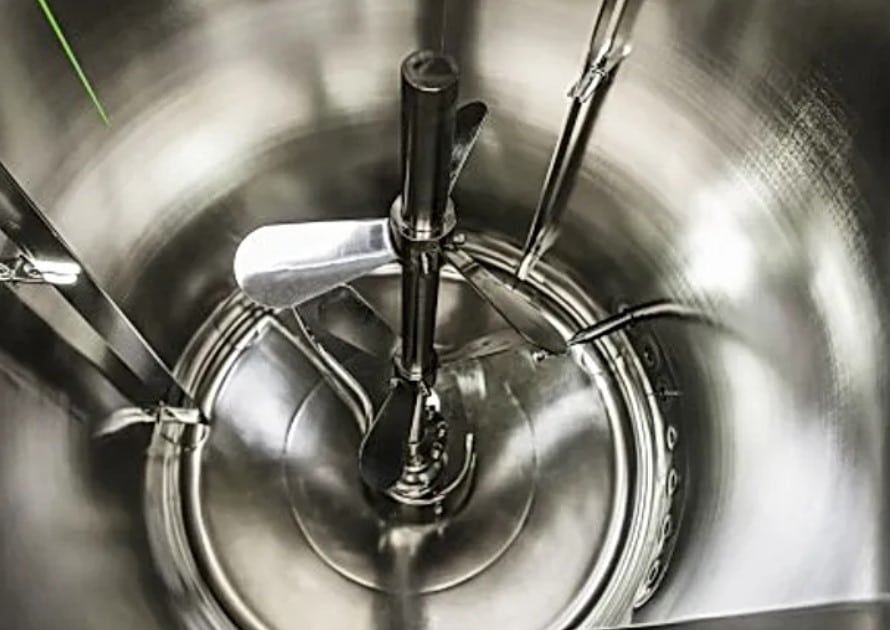

The Vessel

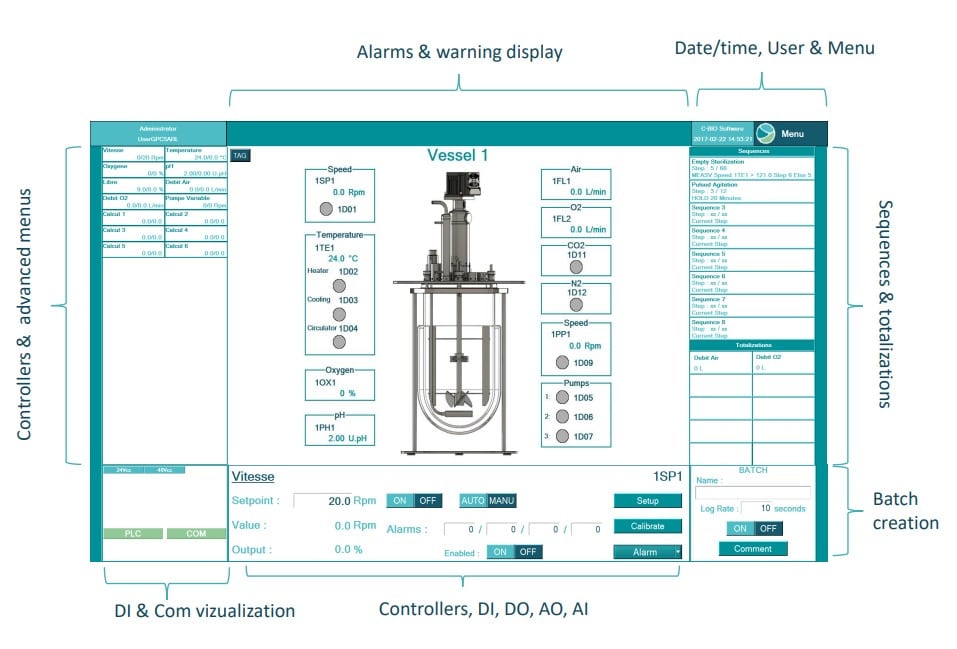

The Software
- Smart and powerful user interface
- Designed to comply with the most demanding processes
- Ergonomic and intuitive operator interface
- Up to 6 bioreactors
- User management (CFR21 part.11)
- Easy maintenance
- Process supervision and automation: thanks to the sequences module (editing and creating recipes)
- Sophisticated control strategies for aeration, additions and harvests
- Real time or retrospective visualization of culture data in graph or table form
- Development of mathematical formulae that can be used in process control strategies
- Quick troubleshooting
- Quick and mistake-proof connections
- Components recognized among industrial standards
- Easy access cabinet
- History of sensor calibration data
- Remote control of the equipment
- Batch saving of all data in SQL database (csv)
- Preventive and corrective maintenance contracts
All strategies possible
- Gas/Aeration
- Media addition
- Culture parameters control temp, pO2, antifoam, level, turbidity, optical density
- Inoculation and supply of substrates and additives
- Sampling
- Vacuum and full sterilization
- Conditioning transfer line
Configurable design
- Top or bottom agitation (mechanical or magnetic)
- Condensor (for exhaust gas)
- Spargers (microsparger, ringsparger)
- Peristaltic pumps (fixed/variable speed)
- Rotameters and/or mass-flow controllers
- Impeller (Rushton, marine)
- Baffles
- Spray ball
- Drain valve
- Industrial monitor and PC (touchscreen)

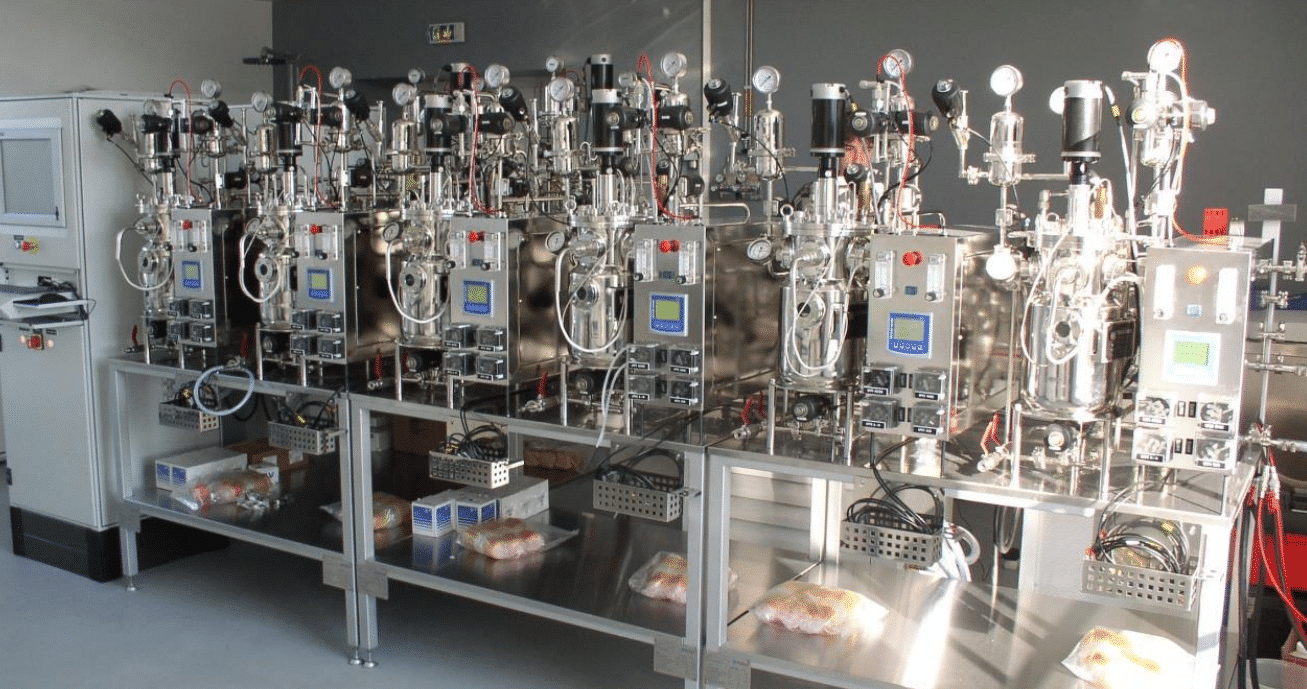

Pro-Lab Bioreactor
Entirely re-designed to be simple to use and intuitive.
Tailor-made in France, Pro-Lab is customizable according to your specifications. delivered fast thanks to our vertical integration and built with the finest components, ensuring robustness and cost-efficiency.
Up to 8 parameters can be controlled per vessel
- Agitation
- Temperature
- pH
- pO2
- Antifoam
- Level
- Redox
- Optical Density
Processes: batch, fed-batch or perfusion
Comply with most standards
- CFR21 part.11
- cGMP
- Design: DESP and GAMP V5
- ISA 5.1
- ASME BPE
- CE
Replacement Parts & Accessories
To view available parts for this instrument and instruments like it, click here.
Our parts and accessories inventory is constantly changing. Don't see what you're looking for? Give us a call, we'll be happy to help.
Service
Service Agreements |
Silver |
Gold |
First Class Ship & Fix |
Economy Ship & Fix |
| Preventative Maintenance Visit | 1 Preventative Maintenance Visit per Year | 1 Preventative Maintenance Visit per Year | ||
| Parts Covered |  |
|
||
| Labor Covered | |
|
|
|
| Unlimited Remote Tech Support | |
|
|
|
| Depot Repair | |
|
||
| Depot Preventative Maintenance | |
