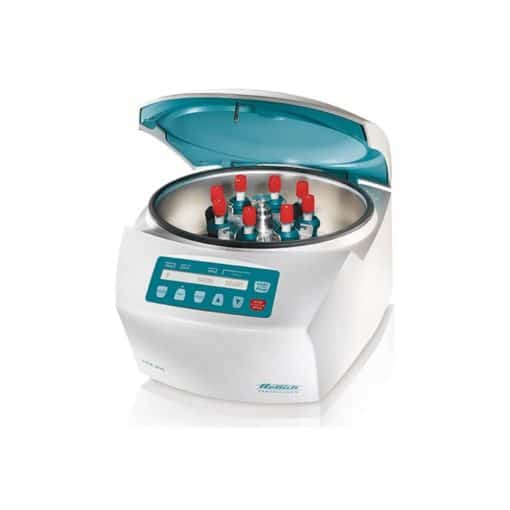

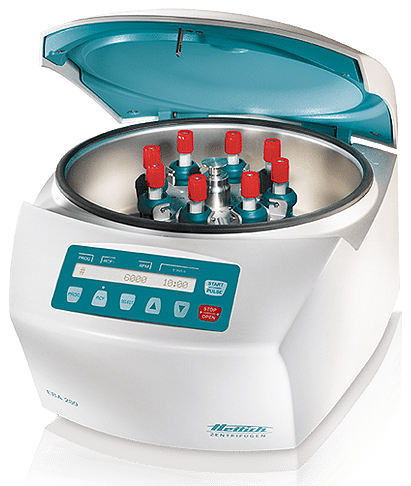

Hettich EBA 280 | S (High Speed) Small Centrifuge
Not sure which configuration is right for your application? Schedule a free consultation with our technical consultants today!
Schedule a consultationProduct Description
Max. Capacity
6 x 50 mL
Max. RPM/RCF
6,000/5,071
Temperature Control
Ambient
BLOOD | URINE | PEDIATRIC | STAT | PPP | COAG.
High-performance with easy to exchange rotors including a 90° swing-out rotor for flat separation of all standard blood tubes. The EBA 280 model ‘S’ is used for rapid separation of your STAT chemistry, coag. and pediatric samples with a max. speed of 6,000 RPM in a swing-out rotor. The EBA 280 is ideal for serology, manual cell washing and clinical chemistry applications.
Five Year Warranty
Quiet Operation
Functional Design
Enhanced Safety

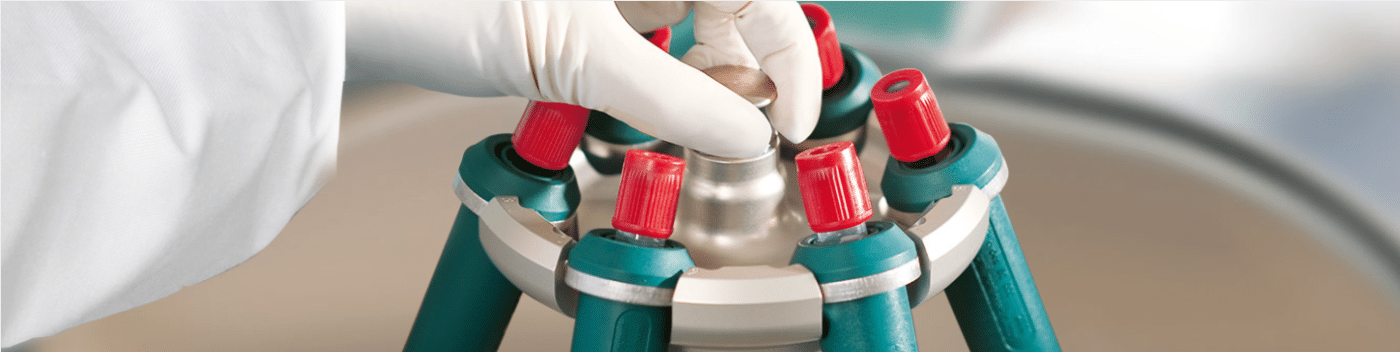

Give Your Workflow a Quick-Lift
Hettich’s Quick-Lift rotor allows you to effortlessly change-out rotors and manage your samples without tools or physical stress.
Flat Separation for Optimal Results
The EBA 280 maximizes its compact dimensions to fit 90º swing-out rotors for flat separation.
Technical Specifications
| Model | EBA 280 | EBA 280 S |
| Max. Capacity | 6 x 50 ml | 6 x 50 ml |
| Max. RPM/RCF | 6,000/4,146 | 6,000/5,071 |
| Temp. Control | Ambient | Ambient |
| Dims. (HxWxD) mm | 242 x 326 x 400 |
242 x 326 x 400
|
| Dims. (HxWxD) in | 9.5 x 13 x 15.75 |
9.5 x 13 x 15.75
|
| Weight (kg) | 12 | 12 |
| Weight (lbs.) | 24 | 24 |
| Power supply | 120 V | 120 V |
| Warranty | 5-years | 5-years |
| Rotor Type(s) | Swing-out, Fixed-angle, Decanting |
Swing-out, Fixed-angle, Decanting
|
EBA 280
BLOOD TUBE PACKAGE – 6
The EBA 280 Blood Tube Package 6 comes complete with everything you need to perform your application. This includes the EBA 280 centrifuge, swing-out rotor, buckets and adapters for 13 x 75 mm and 16 x 75 mm blood tubes. Many a-la-carte options are also available, contact us for more details.
PACKAGE CONTENTS
(1) Centrifuge, (1) Horizontal Rotor, (6) Buckets, (6) Adapters 13 x 75 mm, (6) Adapters 16 x 75 mm
| TUBE QTY. | VOLUME (mL) | SIZE (mm) | RPM | RCF |
| 6 | 1.6 – 5 | 13 x 75 | ≤ 4,700 | ≤ 2,618 |
| 6 | 4 – 7 | 13 x 100 | ≤ 4,700 | ≤ 3,112 |
| 6 | 4 – 7 | 16 x 75 | ≤ 4,700 | ≤ 2,865 |
| 6 | 8.5 – 10 | 16 x 100 | ≤ 4,700 | ≤ 3,112 |
EBA 280 S (HIGH-SPEED)
BLOOD TUBE PACKAGE – 6
The EBA 280 S Blood Tube Package 6 comes complete with everything you need to perform your application. This includes the EBA 280 S centrifuge, swing-out rotor, buckets and adapters for 13 x 75 mm and 16 x 75 mm blood tubes. Many a-la-carte options are also available, contact us for more details.
PACKAGE CONTENTS
(1) Centrifuge, (1) Horizontal Rotor, (6) Buckets, (6) Adapters 13 x 75 mm, (6) Adapters 16 x 75 mm
| TUBE QTY. | VOLUME (mL) | SIZE (mm) | RPM | RCF |
| 6 | 1.6 – 5 | 13 x 75 | ≤ 6,000 | ≤ 4,266 |
| 6 | 4 – 7 | 13 x 100 | ≤ 6,000 | ≤ 5,071 |
| 6 | 4 – 7 | 16 x 75 | ≤ 6,000 | ≤ 4,669 |
| 6 | 8.5 – 10 | 16 x 100 | ≤ 6,000 | ≤ 5,071 |
EBA 280
BLOOD TUBE PACKAGE – 8
The EBA 280 Blood Tube Package 8 comes complete with everything you need to perform your application. This includes the EBA 280 centrifuge, swing-out rotor, buckets and adapters for 13 x 75 mm and 16 x 75 mm blood tubes. Many a-la-carte options are also available, contact us for more details.
PACKAGE CONTENTS
(1) Centrifuge, (1) Horizontal Rotor, (8) Buckets 13 x 75 mm, (8) Buckets 16 x 75 mm
| TUBE QTY. | VOLUME (mL) | SIZE (mm) | RPM | RCF |
| 8 | 1.6 – 5 | 13 x 75 | ≤ 5,000 | ≤ 2,991 |
| 8 | 4 – 7 | 16 x 75 | ≤ 5,000 | ≤ 2,991 |
EBA 280
BLOOD TUBE PACKAGE – 12
The EBA 280 Blood Tube Package 12 comes complete with everything you need to perform your application. This includes the EBA 280 centrifuge, swing-out rotor, buckets and adapters for 13 x 75/100 mm and 16 x 75/100 mm blood tubes. Many a-la-carte options are also available, contact us for more details.
PACKAGE CONTENTS
(1) Centrifuge, (1) Fixed-angle Rotor, (12) Adapters 13 x 75/100 mm
| TUBE QTY. | VOLUME (mL) | SIZE (mm) | RPM | RCF |
| 12 | 1.6 – 5 | 13 x 75 | ≤ 6,000 | ≤ 3,300 |
| 12 | 4 – 7 | 13 x 100 | ≤ 6,000 | ≤ 4,146 |
| 12 | 4 – 10 | 16 x 75/100 | ≤ 6,000 | ≤ 4,146 |
EBA 280
PEDIATRIC TUBE PACKAGE – 6
The EBA 280 Pediatric Tube Package 6 comes complete with everything you need to perform your application. This includes the EBA 280 centrifuge, 6-place swing-out rotor, buckets and adapters for 10.7 x 36 mm tubes. Many a-la-carte options are also available, contact us for more details.
PACKAGE CONTENTS
(1) Centrifuge, (1) 90° Swing-out Rotor, (6) Buckets, (6) Adapters
| TUBE QTY. | VOLUME (mL) | SIZE (mm) | RPM | RCF |
| 6 | 0.5 | 10.7 x 36 | ≤ 4,700 | ≤ 1,877 |
EBA 280 S (HIGH-SPEED)
PEDIATRIC TUBE PACKAGE – 6
The EBA 280 S Pediatric Tube Package 6 comes complete with everything you need to perform your application. This includes the EBA 280 S centrifuge, 6-place swing-out rotor, buckets and adapters for 10.7 x 36 mm tubes. Many a-la-carte options are also available, contact us for more details.
PACKAGE CONTENTS
(1) Centrifuge, (1) 90° Swing-out Rotor, (6) Buckets, (6) Adapters
| TUBE QTY. | VOLUME (mL) | SIZE (mm) | RPM | RCF |
| 6 | 0.5 | 10.7 x 36 | ≤ 6,000 | ≤ 3,059 |
EBA 280
SEROLOGY PACKAGE – 12
The EBA 280 Serology Package 12 comes complete with everything you need to perform your application. This includes the EBA 280 centrifuge, 12-place swing-out rotor and buckets for 10/12/13 x 75 mm tubes. Many a-la-carte options are also available, contact us for more details.
PACKAGE CONTENTS
(1) Centrifuge, (1) Swing-out Rotor, (12) Buckets
| TUBE QTY. | VOLUME (mL) | SIZE (mm) | RPM | RCF |
| 12 | 1.6 – 5 | 10/12/13 x 75 | ≤ 5,000 | ≤ 2,963 |
EBA 280
SEROLOGY DECANTING PACKAGE
The EBA 280 Serology Decanting Package comes complete with everything you need to perform your application. This includes the EBA 280 centrifuge and a 12-place fixed angle rotor. Many a-la-carte options are also available, contact us for more details.
PACKAGE CONTENTS
(1) Centrifuge, (1) Fixed-angle Rotor
| TUBE QTY. | VOLUME (mL) | SIZE (mm) | RPM | RCF |
| 12 | 5 – 7 | 12 x 75/100 | ≤ 5,000 | ≤ 2,879 |
| 12 | 5 – 7 | 10 x 75 | ≤ 5,000 | ≤ 2,879 |
EBA 280
URINALYSIS PACKAGE – 6
The EBA 280 Urinalysis Package 6 comes complete with everything you need to perform your application. This includes the EBA 280 centrifuge, swing-out rotor and buckets for KOVA tubes. Many a-la-carte options are available, contact us for more details.
PACKAGE CONTENTS
(1) Centrifuge, (1) Horizontal Rotor, (6) Buckets
| TUBE QTY. | VOLUME (mL) | SIZE (mm) | RPM | RCF |
| 6 | 12 – KOVA | 17 x 102 | ≤ 4,700 | ≤ 3,112 |
Technical Specifications
| Model | EBA 280 | EBA 280 S |
| Max. Capacity | 6 x 50 ml | 6 x 50 ml |
| Max. RPM/RCF | 6,000/4,146 | 6,000/5,071 |
| Temp. Control | Ambient | Ambient |
| Dims. (HxWxD) mm | 242 x 326 x 400 |
242 x 326 x 400
|
| Dims. (HxWxD) in | 9.5 x 13 x 15.75 |
9.5 x 13 x 15.75
|
| Weight (kg) | 12 | 12 |
| Weight (lbs.) | 24 | 24 |
| Power supply | 120 V | 120 V |
| Warranty | 5-years | 5-years |
| Rotor Type(s) | Swing-out, Fixed-angle, Decanting |
Swing-out, Fixed-angle, Decanting
|
Packages
EBA 280
BLOOD TUBE PACKAGE - 6
The EBA 280 Blood Tube Package 6 comes complete with everything you need to perform your application. This includes the EBA 280 centrifuge, swing-out rotor, buckets and adapters for 13 x 75 mm and 16 x 75 mm blood tubes. Many a-la-carte options are also available, contact us for more details.
PACKAGE CONTENTS
(1) Centrifuge, (1) Horizontal Rotor, (6) Buckets, (6) Adapters 13 x 75 mm, (6) Adapters 16 x 75 mm
| TUBE QTY. | VOLUME (mL) | SIZE (mm) | RPM | RCF |
| 6 | 1.6 - 5 | 13 x 75 | ≤ 4,700 | ≤ 2,618 |
| 6 | 4 - 7 | 13 x 100 | ≤ 4,700 | ≤ 3,112 |
| 6 | 4 - 7 | 16 x 75 | ≤ 4,700 | ≤ 2,865 |
| 6 | 8.5 - 10 | 16 x 100 | ≤ 4,700 | ≤ 3,112 |
EBA 280 S (HIGH-SPEED)
BLOOD TUBE PACKAGE - 6
The EBA 280 S Blood Tube Package 6 comes complete with everything you need to perform your application. This includes the EBA 280 S centrifuge, swing-out rotor, buckets and adapters for 13 x 75 mm and 16 x 75 mm blood tubes. Many a-la-carte options are also available, contact us for more details.
PACKAGE CONTENTS
(1) Centrifuge, (1) Horizontal Rotor, (6) Buckets, (6) Adapters 13 x 75 mm, (6) Adapters 16 x 75 mm
| TUBE QTY. | VOLUME (mL) | SIZE (mm) | RPM | RCF |
| 6 | 1.6 - 5 | 13 x 75 | ≤ 6,000 | ≤ 4,266 |
| 6 | 4 - 7 | 13 x 100 | ≤ 6,000 | ≤ 5,071 |
| 6 | 4 - 7 | 16 x 75 | ≤ 6,000 | ≤ 4,669 |
| 6 | 8.5 - 10 | 16 x 100 | ≤ 6,000 | ≤ 5,071 |
EBA 280
BLOOD TUBE PACKAGE - 8
The EBA 280 Blood Tube Package 8 comes complete with everything you need to perform your application. This includes the EBA 280 centrifuge, swing-out rotor, buckets and adapters for 13 x 75 mm and 16 x 75 mm blood tubes. Many a-la-carte options are also available, contact us for more details.
PACKAGE CONTENTS
(1) Centrifuge, (1) Horizontal Rotor, (8) Buckets 13 x 75 mm, (8) Buckets 16 x 75 mm
| TUBE QTY. | VOLUME (mL) | SIZE (mm) | RPM | RCF |
| 8 | 1.6 - 5 | 13 x 75 | ≤ 5,000 | ≤ 2,991 |
| 8 | 4 - 7 | 16 x 75 | ≤ 5,000 | ≤ 2,991 |
EBA 280
BLOOD TUBE PACKAGE - 12
The EBA 280 Blood Tube Package 12 comes complete with everything you need to perform your application. This includes the EBA 280 centrifuge, swing-out rotor, buckets and adapters for 13 x 75/100 mm and 16 x 75/100 mm blood tubes. Many a-la-carte options are also available, contact us for more details.
PACKAGE CONTENTS
(1) Centrifuge, (1) Fixed-angle Rotor, (12) Adapters 13 x 75/100 mm
| TUBE QTY. | VOLUME (mL) | SIZE (mm) | RPM | RCF |
| 12 | 1.6 - 5 | 13 x 75 | ≤ 6,000 | ≤ 3,300 |
| 12 | 4 - 7 | 13 x 100 | ≤ 6,000 | ≤ 4,146 |
| 12 | 4 - 10 | 16 x 75/100 | ≤ 6,000 | ≤ 4,146 |
EBA 280
PEDIATRIC TUBE PACKAGE - 6
The EBA 280 Pediatric Tube Package 6 comes complete with everything you need to perform your application. This includes the EBA 280 centrifuge, 6-place swing-out rotor, buckets and adapters for 10.7 x 36 mm tubes. Many a-la-carte options are also available, contact us for more details.
PACKAGE CONTENTS
(1) Centrifuge, (1) 90° Swing-out Rotor, (6) Buckets, (6) Adapters
| TUBE QTY. | VOLUME (mL) | SIZE (mm) | RPM | RCF |
| 6 | 0.5 | 10.7 x 36 | ≤ 4,700 | ≤ 1,877 |
EBA 280 S (HIGH-SPEED)
PEDIATRIC TUBE PACKAGE - 6
The EBA 280 S Pediatric Tube Package 6 comes complete with everything you need to perform your application. This includes the EBA 280 S centrifuge, 6-place swing-out rotor, buckets and adapters for 10.7 x 36 mm tubes. Many a-la-carte options are also available, contact us for more details.
PACKAGE CONTENTS
(1) Centrifuge, (1) 90° Swing-out Rotor, (6) Buckets, (6) Adapters
| TUBE QTY. | VOLUME (mL) | SIZE (mm) | RPM | RCF |
| 6 | 0.5 | 10.7 x 36 | ≤ 6,000 | ≤ 3,059 |
EBA 280
SEROLOGY PACKAGE - 12
The EBA 280 Serology Package 12 comes complete with everything you need to perform your application. This includes the EBA 280 centrifuge, 12-place swing-out rotor and buckets for 10/12/13 x 75 mm tubes. Many a-la-carte options are also available, contact us for more details.
PACKAGE CONTENTS
(1) Centrifuge, (1) Swing-out Rotor, (12) Buckets
| TUBE QTY. | VOLUME (mL) | SIZE (mm) | RPM | RCF |
| 12 | 1.6 - 5 | 10/12/13 x 75 | ≤ 5,000 | ≤ 2,963 |
EBA 280
SEROLOGY DECANTING PACKAGE
The EBA 280 Serology Decanting Package comes complete with everything you need to perform your application. This includes the EBA 280 centrifuge and a 12-place fixed angle rotor. Many a-la-carte options are also available, contact us for more details.
PACKAGE CONTENTS
(1) Centrifuge, (1) Fixed-angle Rotor
| TUBE QTY. | VOLUME (mL) | SIZE (mm) | RPM | RCF |
| 12 | 5 - 7 | 12 x 75/100 | ≤ 5,000 | ≤ 2,879 |
| 12 | 5 - 7 | 10 x 75 | ≤ 5,000 | ≤ 2,879 |
EBA 280
URINALYSIS PACKAGE - 6
The EBA 280 Urinalysis Package 6 comes complete with everything you need to perform your application. This includes the EBA 280 centrifuge, swing-out rotor and buckets for KOVA tubes. Many a-la-carte options are available, contact us for more details.
PACKAGE CONTENTS
(1) Centrifuge, (1) Horizontal Rotor, (6) Buckets
| TUBE QTY. | VOLUME (mL) | SIZE (mm) | RPM | RCF |
| 6 | 12 - KOVA | 17 x 102 | ≤ 4,700 | ≤ 3,112 |
Replacement Parts & Accessories
To view available parts for this instrument and instruments like it, click here.
Our parts and accessories inventory is constantly changing. Don't see what you're looking for? Give us a call, we'll be happy to help.
