JeioTech Lab Companion Incubator, Air-jacket (Advanced)
Not sure which configuration is right for your application? Schedule a free consultation with our technical consultants today!
Schedule a consultationProduct Description
Intuitive Large Touch Controller
- Intuitive interface with 5-inch display.
- Events and alerts in a single view with real-time graph.
- Three frequent temperatures automatically suggested.
- ‘Wait on / Wait off’ timer function.
Large intuitive display
Graphs for real-time process monitoring
Unique Structural Functions
- Using Water tray delays media drying, making incubation time longer. (option)
- Double stackable with stacking set (option) maximizes space utilization.

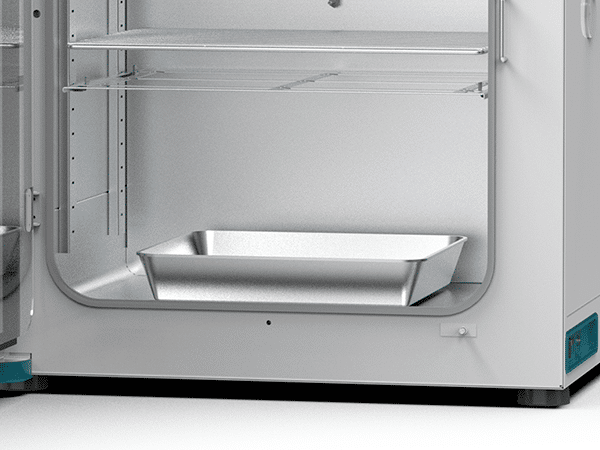

Water tray that minimizes media drying (option)
Increased space utilization by double stacking. (stacking set : option)
Supervise Equipment with Real-time Monitoring
- Monitor the temperature on BMS (Building Management System) for quick responses to abnormalities. (option)
- Monitor and control anywhere, anytime with LC GreenBox. (Mobile Monitoring System, option)
Timely responses via BMS-connected monitoring (BMS port: option)
Real-time monitoring via mobile devices (LC GreenBox: option)
Convenient Experiment and Data Checking
- Support RS-232/USB port and software making easy operation and data management from PC.
- Test data are automatically stored and easily exported via USB; easy to edit data. (in CSV format)
- Logs 36 recent events, including errors, opened door, etc.
- Integrated with 21 CFR Part 11 compliant LC DataKeeper, suitable for GMP audits. (option)
Data storage using USB ports
Store recent 36 events
Reliable Temperature Control Performance
- Temperature accuracy for wide range by 3-point calibration.
- Ramp Control™, function that controls the rate of temperature rise by setting ramping rate(℃/min) per experiment.
- Uniform temperature distribution through airflow optimized for uniform heat transfer. (within ±0.55 ℃ at 37℃)
Accurate temperature control with 3-point calibration
Ramp Control™ per experiment condition
| Model | IB4-03AV | IB4-05AV | IB4-10AV | IB4-15AV | |
|---|---|---|---|---|---|
| Chamber volume (L / cu ft) | 25 / 0.88 | 60 / 2.19 | 114 / 4.03 | 150 / 5.30 | |
| Temperature | Range (℃ / ℉) | Amb. +5 to 80 / Amb. +9 to 176 |
|||
| Fluctuation at 37℃ (±℃ / ℉) | 0.10 / 0.18 | 0.10 / 0.18 | 0.15 / 0.27 | 0.10 / 0.18 | |
| Variation at 37℃ (±℃ / ℉) | 0.31 / 0.56 | 0.48 / 0.86 | 0.46 / 0.83 | 0.55 / 0.99 | |
| Heating time to 37℃ (min.) 1) | 44 | 40 | 46 | 49 | |
| Recovery time at 37℃ (min.) | 5 | 9 | 9 | 9 | |
| Control panel | 5 inch TFT Color LCD | ||||
| Communication interface | USB-B, RS-232 | ||||
| Function | Recently event record | 36 ea | |||
| Recommended temperature | Suggest three frequently used temperature | ||||
| Graph | Available viewing stored and real-time graphs | ||||
| Data storage | Save your experiment data (in CSV format) | ||||
| Temp. ramping rate (℃/min. | ℉/min) | 0 to 2.0 | 0 to 3.6 | ||||
| Dimension (W×D×H) |
Interior (W x D x H, mm / inch) | 300 x 210 x 400 /11.81 x 8.27 x 15.75 |
380 x 330 x 480 /14.96 x 12.99 x 18.9 |
485 x 350 x 655 / 19.1 x 13.78 x 25.79 |
550 x 376 x 710 / 21.62 x 14.8 x 27.95 |
| Exterior (W x D x H, mm / inch) | 478 x 527 x 604 / 18.8 x 20.75 x 23.78 |
558 x 648 x 684 / 21.97 x 25.5 x 26.93 |
663 x 677 x 859 / 26.1 x 26.65 x 33.82 |
728 x 704 x 914 / 28.66 x 27.7 x 36.0 |
|
| Net weight (Kg / lbs) | 31 / 68.34 | 40 / 88.18 | 55 / 121.25 | 60 / 132.28 | |
| Shelves | Quantity of shelves (standard/max.) | 2 / 4 | 2 / 5 | 2 / 8 | 2 / 9 |
| Max. Load per shelf (Kg / lbs) | 20 / 44.09 | 20 / 44.09 | 20 / 44.09 | 20 / 44.09 | |
| Electrical requirements (230V, 50 / 60Hz, A) | 2.5 | 3.5 | 3.5 | 3.5 | |
| Cat. No. |
AAH21755K | AAH21765K | AAH21775K | AAH21785K | |
| Electrical requirements (120V, 60Hz, A) | 4.8 | 6.7 | 6.7 | 6.7 | |
| Cat. No. |
AAH21753U | AAH21763U | AAH21773U | AAH21783U | |
※ Technical data according to DIN 12880
