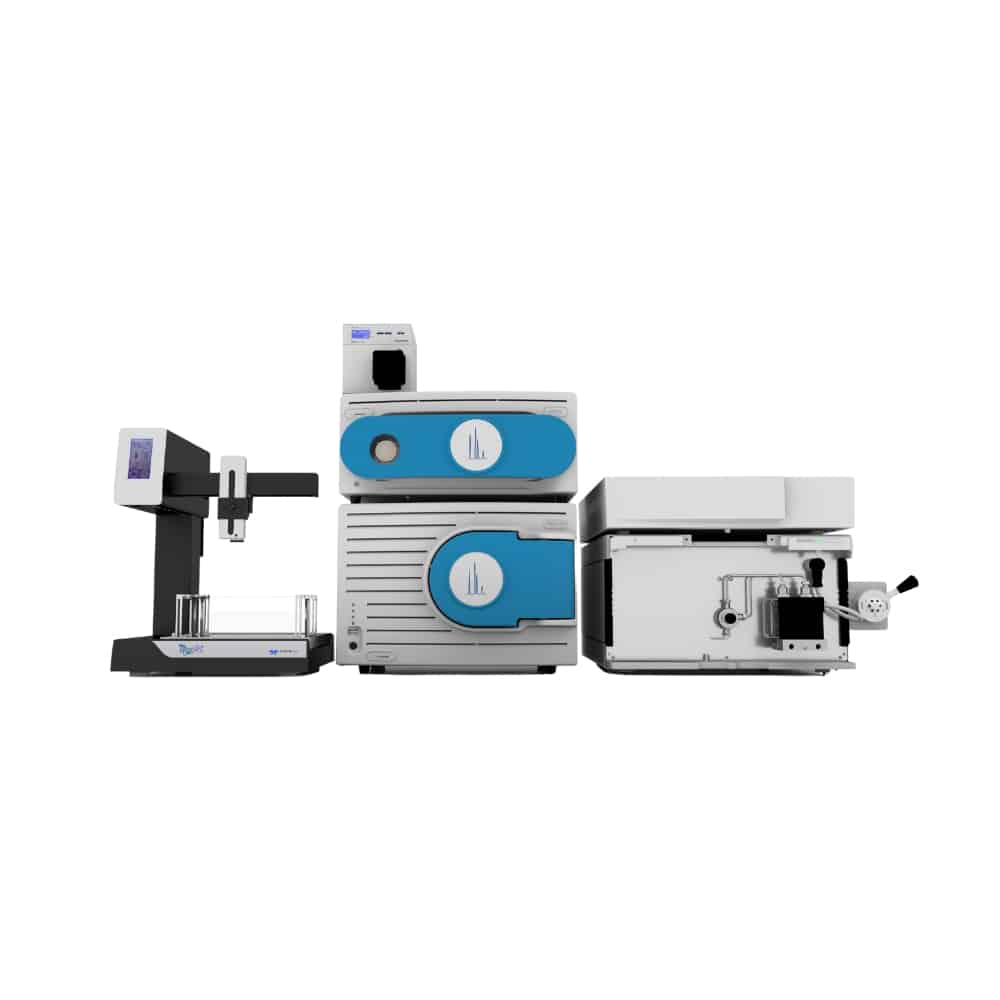

AZURA Prep Pilot 250 LPG / Mass Spectrometer 4000 MiD

Request Quote

Category: Brand:
Not sure which configuration is right for your application?  Schedule a free consultation with our technical consultants today!
Schedule a consultation

Product Description

KNAUER Azura Basic Preparative HPLC System With Mass Spectrometer

  • System type: Pilot
  • Max. flow rate: 100 ml/min
  • Gradient: lpg
  • Maximum delivery pressure: [psi] 3260 psi
  • Maximum delivery pressure: [bar] 225 bar
  • Maximum delivery pressure: [MPa] 22.5 MPa
  • Detector: Mass Spec, Variable single wavelength detection UV/VIS
  • Injection: manual injection
  • Fractionation: Foxy R1
  • Warranty: 2 year factory warranty

Prep System – 100 ml/min max. flow rate, ternary gradient, UV detector, mass spectrometer and fraction collector

The AZURA Prep Pilot 250 LPG with mass spectrometer 4000 MiD is a low pressure gradient (LPG) HPLC system for the mass-directed purification of samples in the laboratory scale. The AZURA Preparative HPLC system is designed and optimized for the purification of milligram to gram samples. The system proposal consists of a preparative HPLC pump with ternary LPG valve block, a manual injection valve, a mass spectrometer 4000 MiD, a UV-detector UVD 2.1S and a fractionation collector. The AZURA P 2.1L pump covers a wide flow rate range and pressure capabilities.
KNAUER PREP LC - AZURA Prep Pilot 250 LPG / Mass Spectrometer 4000 MiD

The integrated automatic recognition of the pump head with RFID technology allows fast adaptions of the pump for various applications. The LPG valve block enables the accurate formation of binary or ternary gradients. The AZURA Preparative HPLC system comes with an eluent tray for safe storage of eluent bottles and an integrated leak management system with sensors. Columns (20 mm and 30 mm ID) can be attached with an optional AZURA mounting bracket at both sides of each AZURA element. A leak sensor and the capillary guidance as well as the optional Mobile Control with touch screen facilitate the safe and user friendly operation. Modern design with completely demountable fronts turn the system into a visual highlight.

Download KNAUER PRep LC Brochure

Specifications

System type Pilot
Max. flow rate 100 ml/min
Gradient lpg
Maximum delivery pressure [psi] 3260 psi
Maximum delivery pressure [bar] 225 bar
Maximum delivery pressure [MPa] 22.5 MPa
Detector Mass spectrometer, Variable single wavelength detection UV/VIS
Injection manual injection
Fractionation Foxy R1
