Untitled design 59 3 510x510 - AZURA Compact Prep LC 50 Isocratic

AZURA Compact Prep LC 50 Isocratic

Request Quote

2 Year Factory Warranty

Category: Brand:
Not sure which configuration is right for your application?  Schedule a free consultation with our technical consultants today!
Schedule a consultation

Product Description

The AZURA® Prep Compact system is the perfect start into preparative chromatography. With the complete, semi-preparative HPLC system you master your isocratic purification tasks.

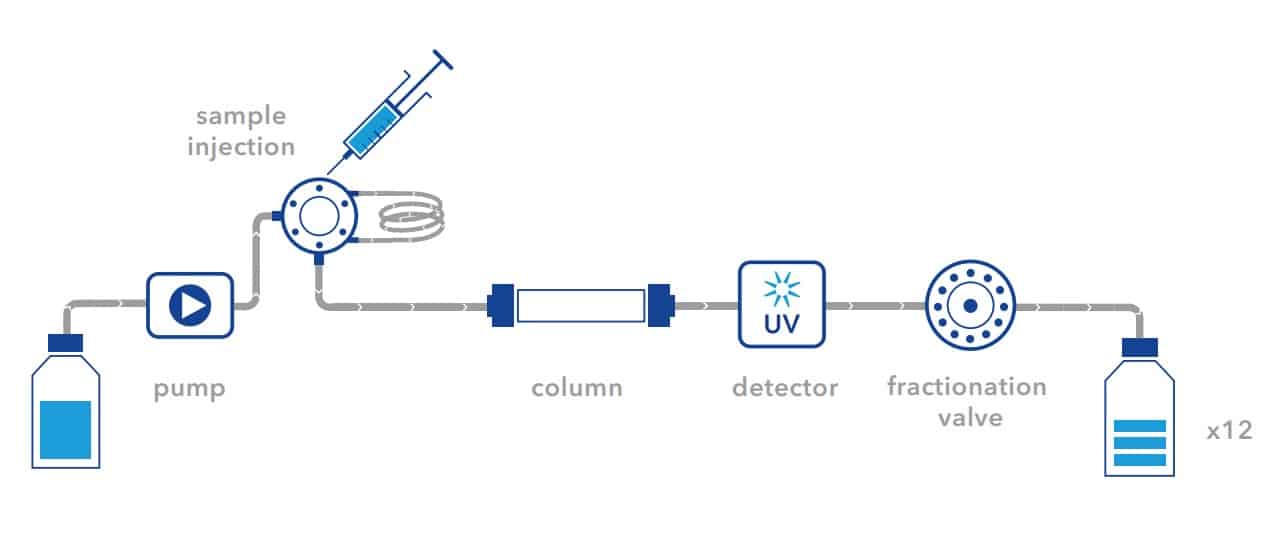

Screenshot 2023 01 10 102734 - AZURA Compact Prep LC 50 Isocratic

One manual injection can purify several hundred milligrams at up to 50 ml/min. Detection takes place via a versatile UV/VIS detector. The intuitive preparative software PurityChrom controls the compact system and regulates the fraction collection via a 12-port fractionating valve. Thanks to its compact design, the AZURA Prep Compact system finds its place in every laboratory.

• Complete semi-preparative isocratic HPLC system with low space requirements
• Injection valve incl. 500 μl sample loop
• UV/VIS detector with one variable wavelength
• Intuitive PurityChrom® software
• Compact and expandable

KNAUER PREP LC - AZURA Compact Prep LC 50 Isocratic

The column can be attached anywhere to the system via magnetic clip. Solvent bottles can be stored in an eluent tray on top of the system. A leak sensor and the capillary guidance as well as a tablet with Mobile Control. Modern design with completely demountable fronts turn the system into a visual highlight. The stackable elements of AZURA allow to create complex system solutions requiring only a minimum of space.

Download KNAUER PRE LC BROCHURE

Specifications

System type Compact
Max. flow rate 50 ml/min
Gradient Isocratic
Maximum delivery pressure [psi] 2180 psi
Maximum delivery pressure [bar] 150 bar
Maximum delivery pressure [MPa] 15 MPa
Detector Variable single wavelength detection UV/VIS
Injection manual injection
Fractionation multi-position valve
Software Mobile Control

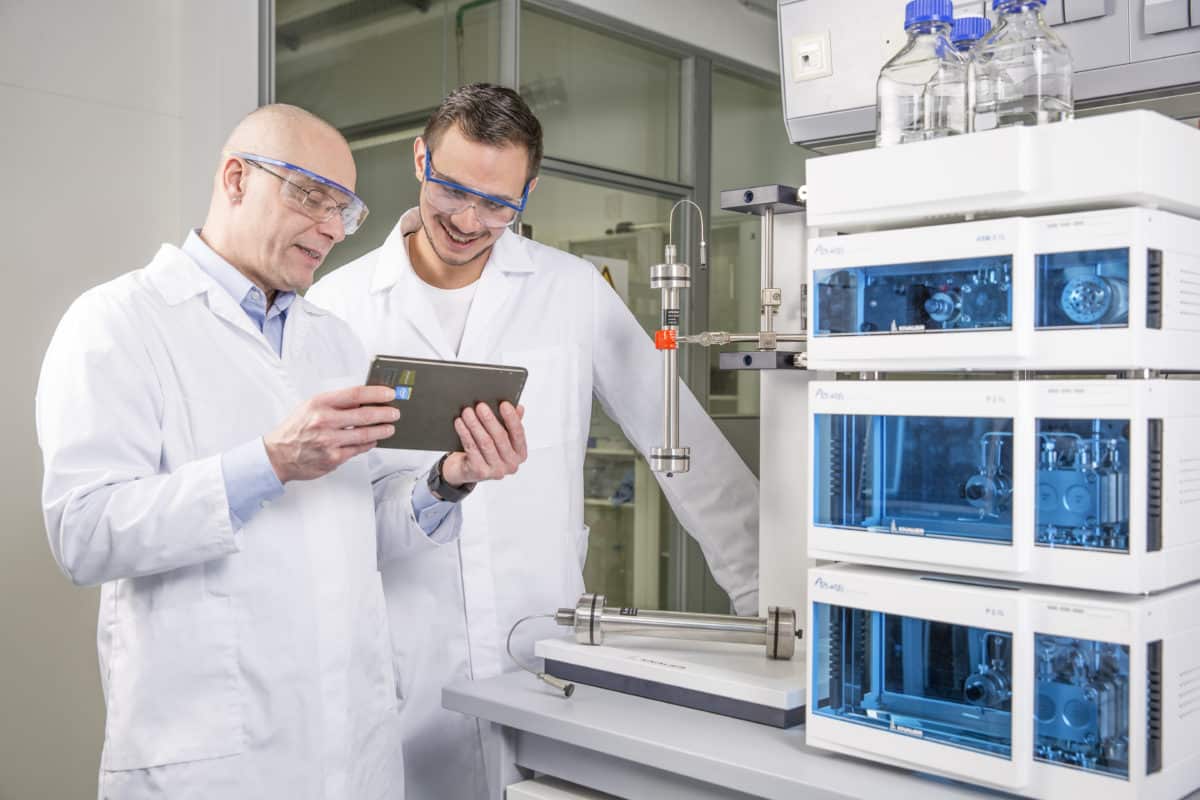

PrepLC Kopie 1200x800 - AZURA Compact Prep LC 50 Isocratic
