Heat Exchanger
If the medium temperature is higher than 50 °C a heat exchanger is required.
MembraPure miniTOC Analyzer
Not sure which configuration is right for your application? Schedule a free consultation with our technical consultants today!
Schedule a consultationProduct Description

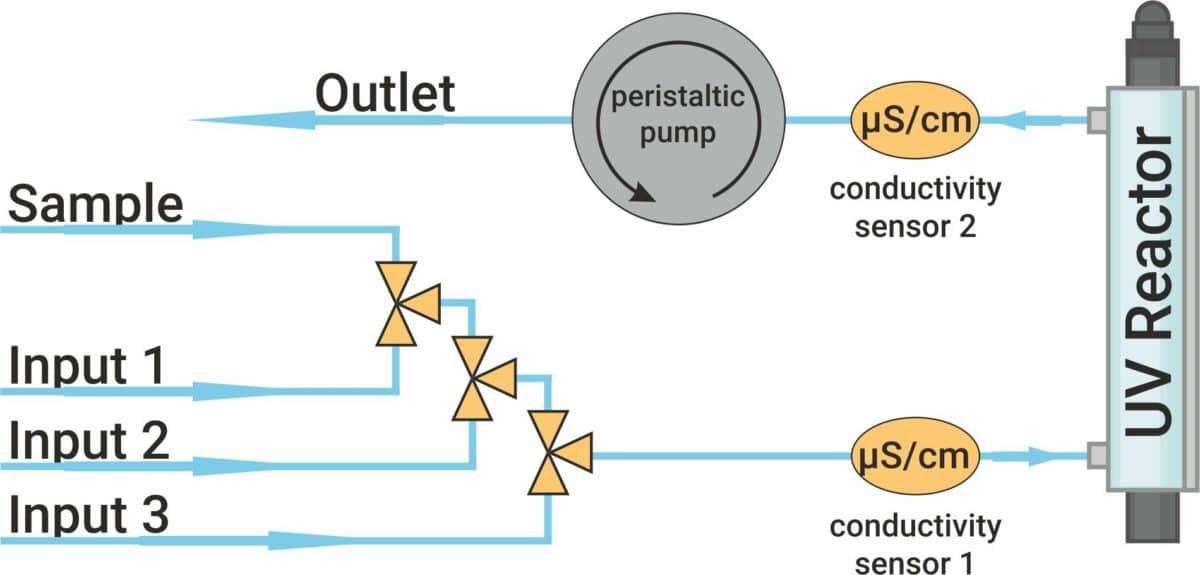

The miniTOC instrument uses the classical flow-through concept for online or offline TOC monitoring of pure and ultra pure water.The efficient UV oxidation of organic compounds by the “direct surface” principle in combination with conductivity detection guarantees the fast monitoring of values.
miniTOC Advantages
• Low sample volume / lower cost and waste
• 9 months UV lamp life guarantee / 50 % longer life time range than usual
• Continuous measurement (every 2 seconds) / fast reaction
• Offline measurement / grab samples can be measured
• Up to 3 sample inlets / very efficient
• Remote service / Instrument can be connected to internet to get service diagnosis)
Calibration & System Suitability Test (SST)
Calibration and SST of the miniTOC is easy and can be done by the user. Online operation is interrupted briefly for the system checks to be performed. The operator simply has to connect the inlet with the calibration standard solutions and the diluting water. The software enables the user to perform calibration and SST independently and the programmable sequence ensures the automatic procedure and data evaluation of the test. The verification of the TOC results according to the requirements of USP and Ph.Eur is realised by the periodic performance of system suitability tests.
Options
Intervall Mode
The miniTOC can be ordered as configuration with 4 inputs (miniTOC pro). With an additional software upgrade option the user can measure up to 3 loops sequentially.
Offline Version & Autosampler
An offline configuration is available for the miniTOC. By using the offline mode of the miniTOC pro the system is also upgradable with an autosampler with 15 positions for 100 mL vials.
Check of Sample Flow
Initiates alarm in case of inlet flow is zero
Pressure Regulator
If the medium pressure is higher than 1 bar a pressure transducer is required.
21 CFR part 11 Software
Software with 21 CFR part11 conformity for pharma applications.
IP 54
The housing protects the miniTOC from dust deposits and water jets.
Conductivity Range
extended conductivity of sample up to 10 µS/cm
Technical Specifications
Technical Specifications:
- Method & Detection:
UV-Oxidation & conductivity
- Sample Volume Flow:
ca. 14 mL/min
- Total Organic Carbon (TOC)-Range:
0.5 to 1000 ppb
- Related Norms:
USP <643>, EP 2.2.44, DIN EN 1484
Technical Specifications |
|
|---|---|
| method & detection | UV oxidation (partial) & conductivity |
| sample volume flow | approx. 14 mL/min |
| time of measurement | 2 sec (online mode) | 1 min (offline mode) |
| measurement range | 0.5 to 1000 ppb |
| detection accuracy | ~0.5 ppb or 1 % (whatever is greater) |
| ports | 1 for sample, 1 for SST (basic) | 1 for sample, 3 for SST (pro) |
| related norms | USP <643>, EP 2.2.44, DIN EN 1484 |
| ambient parameters | relative humidity: 10 to 95 %, temperature: 10 to 45 °C |
| interface ports | analog, according to Namur NE43 |
| dimensions, weight, power | 300 x 200 x 500 mm, 14 kg, 110 – 230 V, 50 Hz, 60 Watt |
Medium Requirements |
|
|---|---|
| type of sample medium | pure or ultra pure water |
| medium conductivity | < 2 µS/cm (upgradable to < 10 µS/cm) |
| inlet pressure | < 1 bar |
| sample temperature | < 50 °C |
| Weight | 1600 oz |
|---|---|
| Dimensions | 40 × 48 × 48 in |
