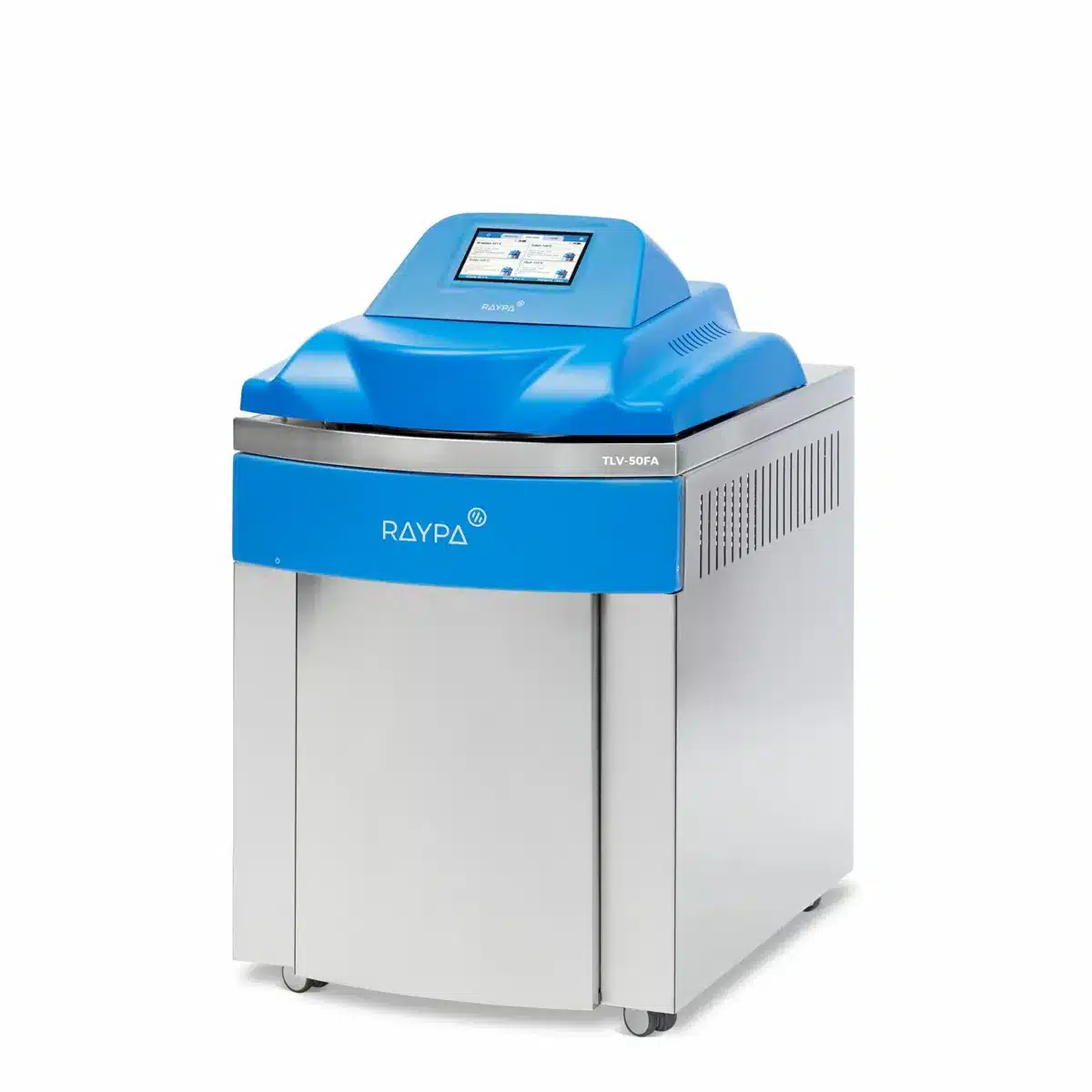

RAYPA Vertical Autoclave with Fast Cooling System TLV-FA Series
Not sure which configuration is right for your application? Schedule a free consultation with our technical consultants today!
Schedule a consultationProduct Description
Designed specifically for the pharmaceutical and biotech industries, the TLV-FA Series vertical autoclaves excel in sterilizing liquid loads thanks to their fast cooling system that includes pressure support.
- Up to 60% faster sterilization of liquids
- Fully automatic, equipped with cutting-edge engineering and exceptional quality in every detail
- Advanced cloud-based connectivity that complies with FDA, GMP, and GLP standards
Vertical laboratory autoclaves with fast cooling system

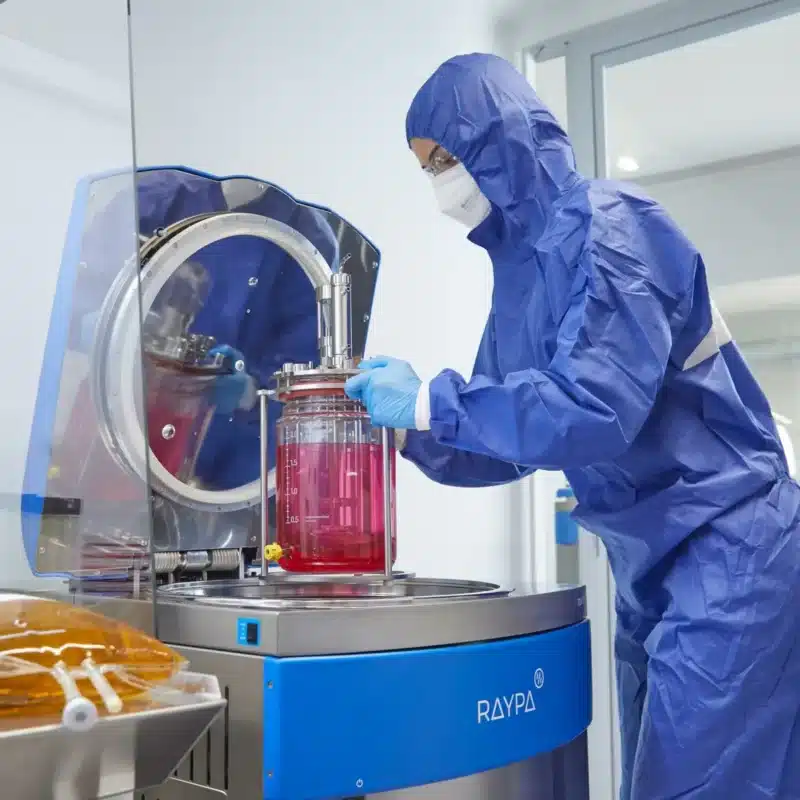

The TLV-FA Series vertical autoclaves are equipped with a fast cooling system including water coil, air compressor, internal fan and flexible probes. They are specially designed to provide advanced liquid sterilization in industrial and research environments in the pharmaceutical, chemical and biotechnology industries sterilizing aqueous solutions, liquid agar, lysogenic broth or pre-filled syringes. They can also process solid loads.
Top line vertical autoclaves enable fully digital operation. All models are equipped with the most advanced connectivity on the market and comply with the latest advances in electronic records and data control to be able to work under FDA, GMP and GLP environments.
State-of-the-art technology for advanced liquid sterilization
Thanks to its fast cooling system consisting of a radial fan, water coil and air compressor, you will be able to sterilize liquid loads more quickly. Install up to 2 flexible probes and conduct F₀-controlled sterilizations.

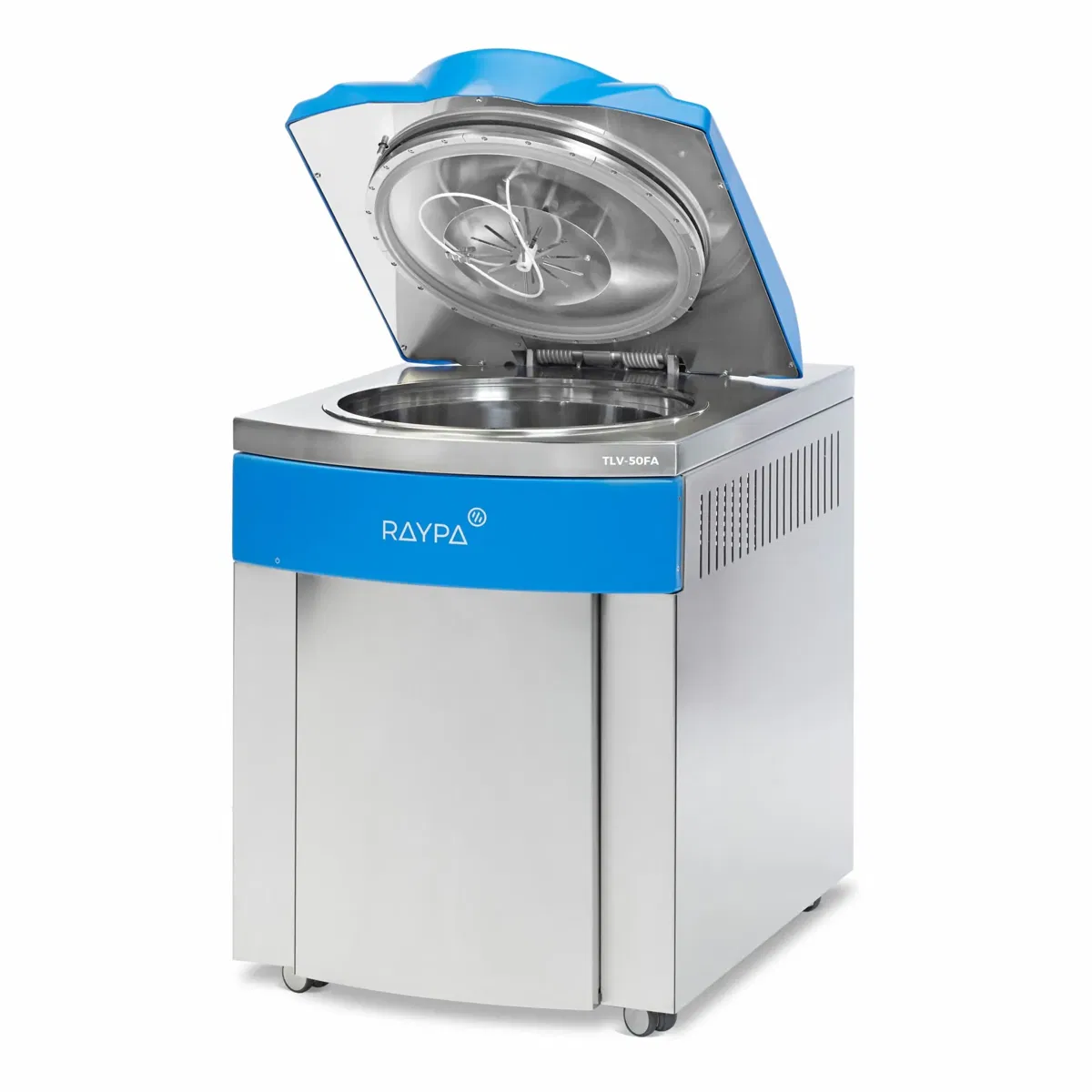

Modern design and fully automatic

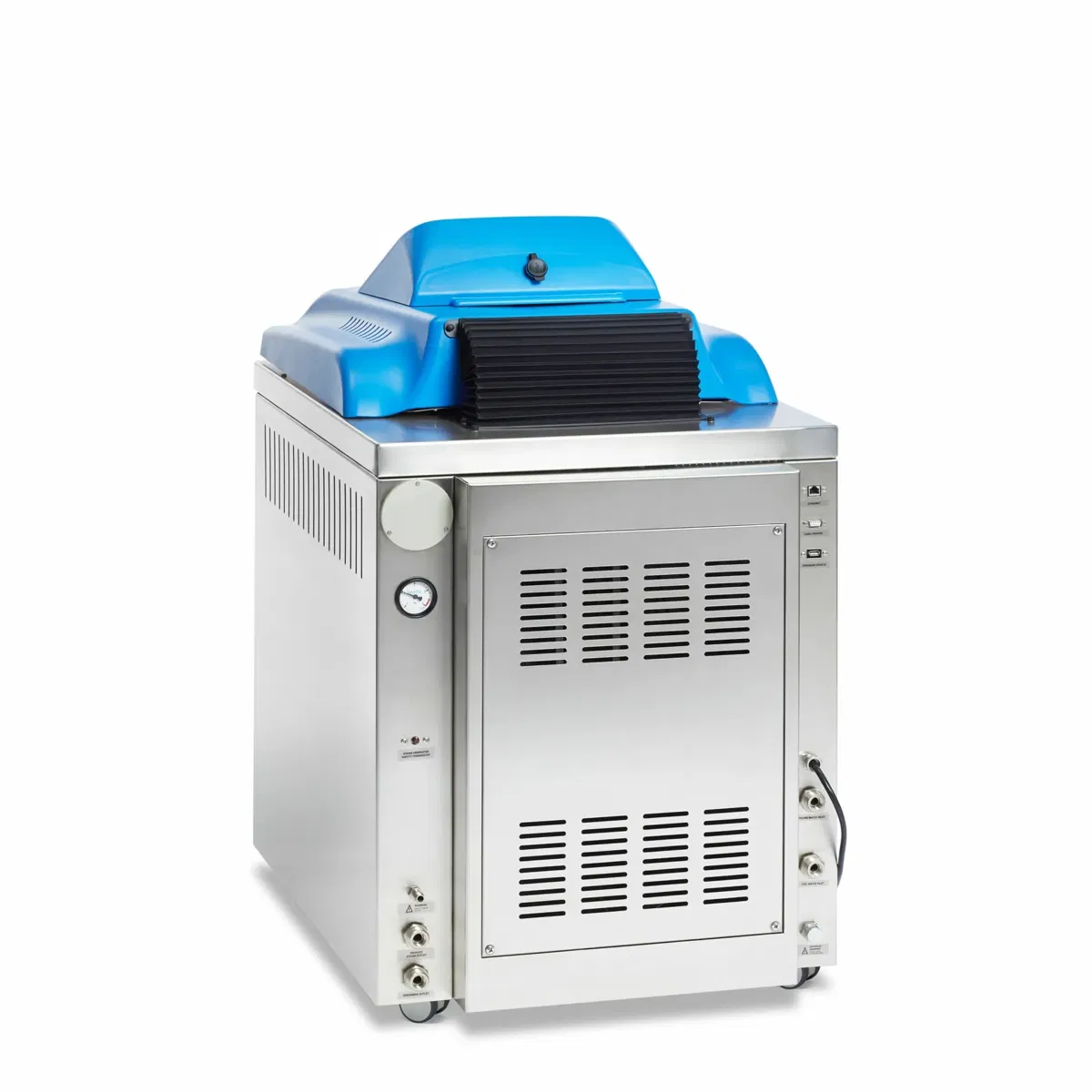

State-of-the-art technology. Push-button-controlled mechanically assisted door. Instant steam production by the built-in steam generator. Air inlet and outlet fitted with a bacteriological filter. Equipped with a vacuum pump and an air compressor. High-performance fast cooling system composed of water cooling coils, internal radial fan and pressure support. Automatic filling from the water network. Water-cooled direct discharge.
| Features | TLV-50 | TLV-75 | TLV-110 | TLV-150 |
|---|---|---|---|---|
| Chamber dimensions Ø x H usable | 400 x 450 mm | 400 x 650 mm | 500 x 600 mm | 500 x 850 mm |
| Chamber volume total / usable | 58 / 56 L | 83 / 81 L | 124 / 118 L | 169 / 155 L |
| External dimensions L x D x H | 610 x 870 x 1060 mm | 610 x 876 x 1110 mm | 710 x 980 x 1160 mm | 710 x 980 x 1310 mm |
| Weight | 140 Kg | 150 Kg | 195 Kg | 210 Kg |
| Power | 3600 W | 3600 W | 9000 W | 9000 W |
| Electrical voltage* | 230 (1P+N+E) V | 230 (1P+N+E) V | 400 (3P+N+E) V | 400 (3P+N+E) V |
| Frequency | 50 / 60 Hz | 50 / 60 Hz | 50 / 60 Hz | 50 / 60 Hz |
| Working temperature range | 105 – 140 ºC | 105 – 140 ºC | 105 – 140 ºC | 105 – 140 ºC |
| Maximum working pressure | 2,6 barg | 2,6 barg | 2,6 barg | 2,6 barg |
| Maximum design Temperature / Pressure | 143 ºC / 2,9 barg | 143 ºC / 2,9 barg | 143 ºC / 2,9 barg | 143 ºC / 2,9 barg |
| * Ask for other voltages. | ||||
| Specifications | TLV | TLV-PD | TLV-FA |
|---|---|---|---|
| Integrated steam generator separated into the housing | ✔ | ✔ | ✔ |
| Automatic block/unblock system | ✔ | ✔ | ✔ |
| Mechanical assisted door | ✔ | ✔ | ✔ |
| Fast cooling | – | – | ✔ |
| Pre-vacuum | ✔ | ✔ | ✔ |
| Post-vacuum | – | ✔ | – |
| Air exhaust filtration | ✔ | ✔ | ✔ |
| Water ring vacuum pump | – | ✔ | – |
| Internal radial fan | – | – | ✔ |
| Steam exhaust condensation with cold water | ✔ | ✔ | ✔ |
| Autofill: automatic purified water feed for steam generation | ✔ | ✔ | ✔ |
| Temperature holding function after the end of program for liquids | ✔ | ✔ | ✔ |
| Housing and basic frame construction in stainless steel | ✔ | ✔ | ✔ |
| Lid and pressure vessel construction | 316L | 316L | 316L |
| Pressure gauge | ✔ | ✔ | ✔ |
| 4 casters (with brakes in two of them) | ✔ | ✔ | ✔ |
| Flexible PT-100 temperature sensor | O | O | ✔ |
| Second flexible PT-100 temperature sensor | O | O | O |
| Printer for batch documentation Integrated | O | O | O |
| Printer for batch documentation External | O | O | O |
| Barcode scanner with label printer | O | O | O |
| Number of sterilization programs | 50 | 50 | 50 |
| Password secured access rights for parameterization | ✔ | ✔ | ✔ |
| Automatic microprocessor control | ✔ | ✔ | ✔ |
| 7” capacitive colour touch screen | ✔ | ✔ | ✔ |
| External data transfer (network compatible) RS-232 | ✔ | ✔ | ✔ |
| USB | ✔ | ✔ | ✔ |
| ETHERNET | ✔ | ✔ | ✔ |
| WI-FI | ✔ | ✔ | ✔ |
| RAYPA CLOUD Basic (extensive documentation/network compatible) | O | O | O |
| RAYPA CLOUD Premium (extensive documentation/network compatible) | O | O | O |
| Private cloud server | O | O | O |
| Internal memory for documentation for sterilization cycles | up to 1,000,000 | up to 1,000,000 | up to 1,000,000 |
| Data backup via USB reader | ✔ | ✔ | ✔ |
| Timer for programmable start time | ✔ | ✔ | ✔ |
| Calculation of FO value in combination with flexible PT-100 | O | O | ✔ |
| FDA 21 CFR Part 11 and GMP Annex 11 compliance | O | O | O |
| Connection to LIMS*** | ✔ | ✔ | ✔ |
|
✔ Standard O Optional *** LIMS: Laboratory Information Management System |
|||
