(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (2) Adapters 13 x 75/100 mm, (2) Adapters 16 x 75/100 mm, (4) Bio-containment Lids

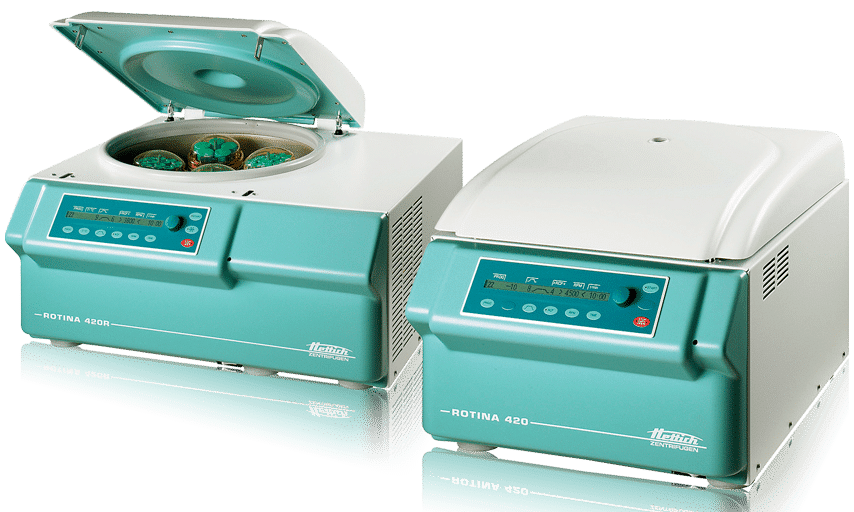

Hettich Rotina 420 | 420R (Refrigerated) Benchtop Centrifuge
$13,755.00 – $15,615.00
Not sure which configuration is right for your application? Schedule a free consultation with our technical consultants today!
Schedule a consultationProduct Description
Max. Capacity
4 x 600 mL
Max. RPM/RCF
15,000/24,400
Temperature Control
Ambient | -20 °C to +4 °C (420R)
BLOOD | CELL CULTURE | PLATES | BOTTLES
Five Year Warranty
Quiet Operation
Functional Design
Enhanced Safety
Technical Specifications
| Model | ROTINA 420 |
ROTINA 420 R
|
| Max. Capacity | 4 x 600 ml | 4 x 600 ml |
| Max. RPM/RCF | 15,000/24,400 | 15,000/24,400 |
| Temp. Control | Ambient |
-20 °C to +4 °C
|
| Dims. (HxWxD) mm | 423 x 506 x 650 |
423 x 713 x 654
|
| Dims. (HxWxD) in | 17 x 20 x 25.5 | 17 x 28 x 26 |
| Weight (kg) | 84 | 117 |
| Weight (lbs) | 185 | 258 |
| Power Supply | 120 V | 120 V |
| Warranty | 5-years | 5-years |
| Rotor Type(s) | Swing-out, Fixed-angle, Plates |
Swing-out, Fixed-angle
|
Packages
ROTINA 420 Application Packages
ROTINA 420(R) - BLOOD TUBE PACKAGE - 2 - BC
4170-10-0101 | 4170-10-0109 (Refrigerated)
The ROTINA 420 Blood Tube Package 2 BC comes complete with everything you need to perform your application. This includes the ROTINA 420 or ROTINA 420 R centrifuge, swing-out rotor, buckets and adapters for 13 x 75/100 mm and 16 x 75/100 mm and bio-containment lids. Many a-la-carte options are also available, contact us for more details.
PACKAGE CONTENTS
| TUBE QTY. | VOLUME (mL) | SIZE (mm) | RPM | RCF |
| 52 | 1.6 - 7 | 13 x 75/100 | ≤ 4,800 | ≤ 4,585 |
| 36 | 4 - 10 | 16 x 75/100 | ≤ 4,800 | ≤ 4,585 |
ROTINA 420(R) - CELL CULTURE PACKAGE - 4 - BC
4170-10-0107 | 4170-10-0115 (Refrigerated)
The ROTINA 420 Cell Culture Package 4 BC comes complete with everything you need to perform your application. This includes the ROTINA 420 or ROTINA 420 R centrifuge, swing-out rotor, buckets and adapters for 15 mL and 50 mL tubes and bio-containment lids. Many a-la-carte options are also available, contact us for more details.
PACKAGE CONTENTS
(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters 5 mL, (4) Adapters 50 mL, (4) Bio-containment Lids
| TUBE QTY. | VOLUME (mL) | SIZE (mm) | RPM | RCF |
| 52 | 15 Conical | 17 x 120 | ≤ 4,800 | ≤ 4,740 |
| 20 | 50 Conical | 29 x 115 | ≤ 4,800 | ≤ 4,688 |
ROTINA 420(R) - CELL CULTURE PACKAGE - 2 - BC
4170-10-0106 | 4170-10-0114 (Refrigerated)
The ROTINA 420 Cell Culture Package 2 BC comes complete with everything you need to perform your application. This includes the ROTINA 420 or ROTINA 420 R centrifuge, swing-out rotor, buckets and adapters for 15 mL and 50 mL tubes and bio-containment lids. Many a-la-carte options are also available, contact us for more details.
PACKAGE CONTENTS
(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (2) Adapters 5 mL, (2) Adapters 50 mL, (4) Bio-containment Lids
| TUBE QTY. | VOLUME (mL) | SIZE (mm) | RPM | RCF |
| 26 | 15 Conical | 17 x 120 | ≤ 4,800 | ≤ 4,740 |
| 10 | 50 Conical | 29 x 115 | ≤ 4,800 | ≤ 4,688 |
ROTINA 420(R) - PLATE PACKAGE
4170-10-0108 | 4170-10-0116 (Refrigerated)
The ROTINA 420 Plate Package comes complete with everything you need to perform your application. This includes the ROTINA 420 or ROTINA 420 R centrifuge, swing-out rotor, and buckets. Many a-la-carte options are also available, contact us for more details.
PACKAGE CONTENTS
(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets
| PLATE QTY. | VOLUME (mL) | SIZE (mm) | RPM | RCF |
| 16 | Microtiter | -- | ≤ 4,800 | ≤ 4,096 |
ROTINA 420(R) - BOTTLE PACKAGE - BC
| Model | Package | GMI Part # |
| ROTINA 420R | 420R - BOTTLE - 250-BC | 4170-10-0111 |
| ROTINA 420R | 420R - BOTTLE - 400-BC | 4170-10-0112 |
| ROTINA 420R | 420R - BOTTLE - 600-BC | 4170-10-0204 |
| ROTINA 420 | 420 - BOTTLE - 250-BC | 4170-10-0103 |
| ROTINA 420 | 420 - BOTTLE - 400-BC | 4170-10-0104 |
| ROTINA 420 | 420 - BOTTLE - 600-BC | 4170-10-0232 |
The ROTINA 420 Bottle Package BC comes complete with everything you need to perform your application. This includes the ROTINA 420 centrifuge, swing-out rotor, buckets and adapters and bio-containment lids. Many a-la-carte options are also available, contact us for more details.
PACKAGE CONTENTS
(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters, (4) Bio-containment Lids
Note: Compatible with other bottle sizes up to 600 ml, please inquire
| BOTTLE QTY. | VOLUME (mL) | SIZE (mm) | RPM | RCF |
| 4 | 250 | 61 x 122 | ≤ 4,800 | ≤ 4,740 |
| 4 | 400 | 81 x 136 | ≤ 4,800 | ≤ 4,740 |
| 4 | 600 | 93 x 134 | ≤ 4,800 | ≤ 4,740 |
Technical Specifications
| Model | ROTINA 420 |
ROTINA 420 R
|
| Max. Capacity | 4 x 600 ml | 4 x 600 ml |
| Max. RPM/RCF | 15,000/24,400 | 15,000/24,400 |
| Temp. Control | Ambient |
-20 °C to +4 °C
|
| Dims. (HxWxD) mm | 423 x 506 x 650 |
423 x 713 x 654
|
| Dims. (HxWxD) in | 17 x 20 x 25.5 | 17 x 28 x 26 |
| Weight (kg) | 84 | 117 |
| Weight (lbs) | 185 | 258 |
| Power Supply | 120 V | 120 V |
| Warranty | 5-years | 5-years |
| Rotor Type(s) | Swing-out, Fixed-angle, Plates |
Swing-out, Fixed-angle
|
Packages
ROTINA 420 Application Packages
ROTINA 420(R) - BLOOD TUBE PACKAGE - 2 - BC
4170-10-0101 | 4170-10-0109 (Refrigerated)
The ROTINA 420 Blood Tube Package 2 BC comes complete with everything you need to perform your application. This includes the ROTINA 420 or ROTINA 420 R centrifuge, swing-out rotor, buckets and adapters for 13 x 75/100 mm and 16 x 75/100 mm and bio-containment lids. Many a-la-carte options are also available, contact us for more details.
PACKAGE CONTENTS
(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (2) Adapters 13 x 75/100 mm, (2) Adapters 16 x 75/100 mm, (4) Bio-containment Lids
| TUBE QTY. | VOLUME (mL) | SIZE (mm) | RPM | RCF |
| 52 | 1.6 - 7 | 13 x 75/100 | ≤ 4,800 | ≤ 4,585 |
| 36 | 4 - 10 | 16 x 75/100 | ≤ 4,800 | ≤ 4,585 |
ROTINA 420(R) - CELL CULTURE PACKAGE - 4 - BC
4170-10-0107 | 4170-10-0115 (Refrigerated)
The ROTINA 420 Cell Culture Package 4 BC comes complete with everything you need to perform your application. This includes the ROTINA 420 or ROTINA 420 R centrifuge, swing-out rotor, buckets and adapters for 15 mL and 50 mL tubes and bio-containment lids. Many a-la-carte options are also available, contact us for more details.
PACKAGE CONTENTS
(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters 5 mL, (4) Adapters 50 mL, (4) Bio-containment Lids
| TUBE QTY. | VOLUME (mL) | SIZE (mm) | RPM | RCF |
| 52 | 15 Conical | 17 x 120 | ≤ 4,800 | ≤ 4,740 |
| 20 | 50 Conical | 29 x 115 | ≤ 4,800 | ≤ 4,688 |
ROTINA 420(R) - CELL CULTURE PACKAGE - 2 - BC
4170-10-0106 | 4170-10-0114 (Refrigerated)
The ROTINA 420 Cell Culture Package 2 BC comes complete with everything you need to perform your application. This includes the ROTINA 420 or ROTINA 420 R centrifuge, swing-out rotor, buckets and adapters for 15 mL and 50 mL tubes and bio-containment lids. Many a-la-carte options are also available, contact us for more details.
PACKAGE CONTENTS
(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (2) Adapters 5 mL, (2) Adapters 50 mL, (4) Bio-containment Lids
| TUBE QTY. | VOLUME (mL) | SIZE (mm) | RPM | RCF |
| 26 | 15 Conical | 17 x 120 | ≤ 4,800 | ≤ 4,740 |
| 10 | 50 Conical | 29 x 115 | ≤ 4,800 | ≤ 4,688 |
ROTINA 420(R) - PLATE PACKAGE
4170-10-0108 | 4170-10-0116 (Refrigerated)
The ROTINA 420 Plate Package comes complete with everything you need to perform your application. This includes the ROTINA 420 or ROTINA 420 R centrifuge, swing-out rotor, and buckets. Many a-la-carte options are also available, contact us for more details.
PACKAGE CONTENTS
(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets
| PLATE QTY. | VOLUME (mL) | SIZE (mm) | RPM | RCF |
| 16 | Microtiter | -- | ≤ 4,800 | ≤ 4,096 |
ROTINA 420(R) - BOTTLE PACKAGE - BC
| Model | Package | GMI Part # |
| ROTINA 420R | 420R - BOTTLE - 250-BC | 4170-10-0111 |
| ROTINA 420R | 420R - BOTTLE - 400-BC | 4170-10-0112 |
| ROTINA 420R | 420R - BOTTLE - 600-BC | 4170-10-0204 |
| ROTINA 420 | 420 - BOTTLE - 250-BC | 4170-10-0103 |
| ROTINA 420 | 420 - BOTTLE - 400-BC | 4170-10-0104 |
| ROTINA 420 | 420 - BOTTLE - 600-BC | 4170-10-0232 |
The ROTINA 420 Bottle Package BC comes complete with everything you need to perform your application. This includes the ROTINA 420 centrifuge, swing-out rotor, buckets and adapters and bio-containment lids. Many a-la-carte options are also available, contact us for more details.
PACKAGE CONTENTS
(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters, (4) Bio-containment Lids
Note: Compatible with other bottle sizes up to 600 ml, please inquire
| BOTTLE QTY. | VOLUME (mL) | SIZE (mm) | RPM | RCF |
| 4 | 250 | 61 x 122 | ≤ 4,800 | ≤ 4,740 |
| 4 | 400 | 81 x 136 | ≤ 4,800 | ≤ 4,740 |
| 4 | 600 | 93 x 134 | ≤ 4,800 | ≤ 4,740 |
Replacement Parts & Accessories
To view available parts for this instrument and instruments like it, click here.
Our parts and accessories inventory is constantly changing. Don't see what you're looking for? Give us a call, we'll be happy to help.
