Winpact Solid State Fermentation System, FS-V-SA05P
Not sure which configuration is right for your application? Schedule a free consultation with our technical consultants today!
Schedule a consultationProduct Description
Solid state fermentation (SSF) can be used for enzyme, antibiotics, biofuel, and organic acid production in the food, pharmaceutical, cosmetic, industries, etc. One of the features for Solid state fermentation is to create low water level cultivating conditions for fungus, mold, filamentous fungi, and some bacteria growth.

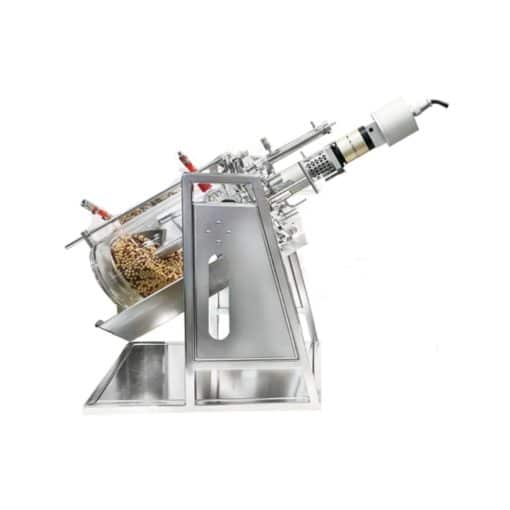

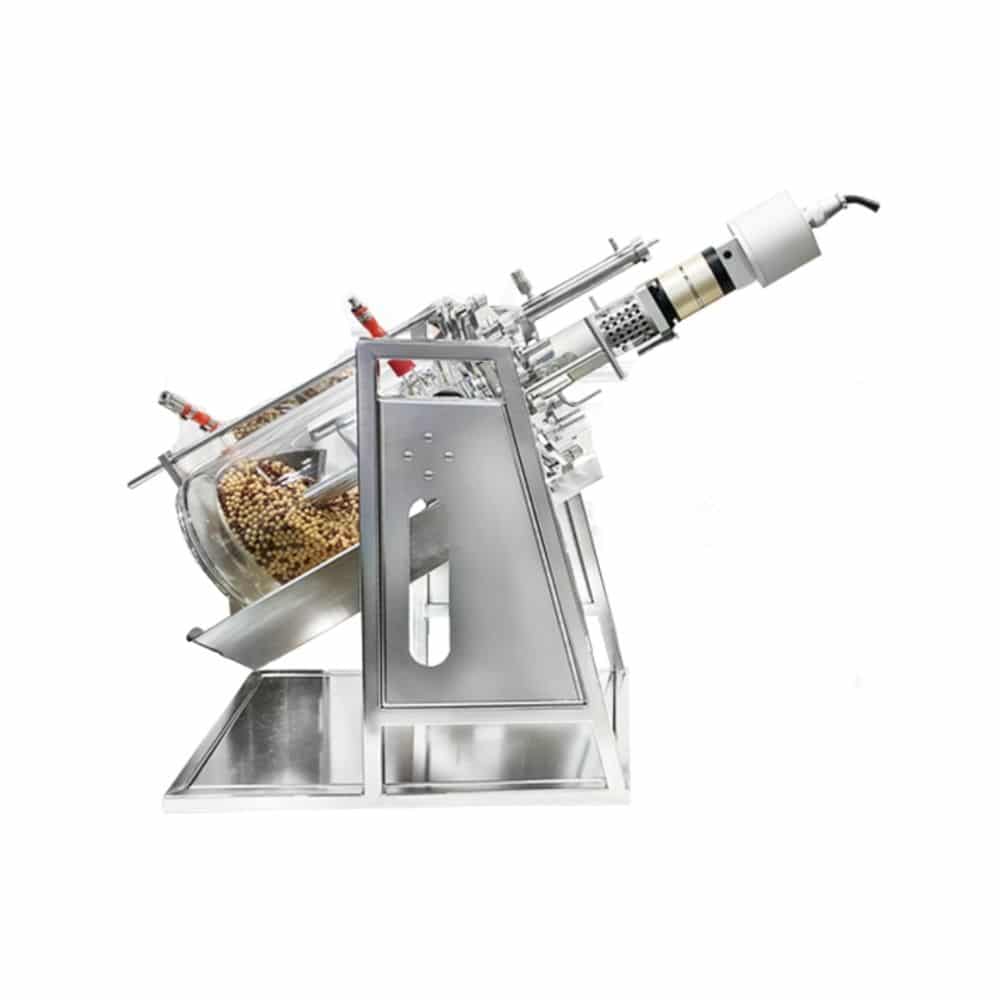

Winpact Solid State Fermentation system is designed for the laboratory scale research to get excellent results. It is featured with a 10.4″ color touch screen, user-friendly interface and 4 built-in peristaltic pumps on the Linux based operation system. An automatic vessel angle control mechanism provides an outstanding mixing efficiency for solid state material research. This system is suitable for both aerobic and anaerobic fermentation with three kinds of impellers available (Broken, Anchor and Spiral type).
- 10.4″ Color touch-screen interface
- Remote software control through Ethernet, up to 16 systems / PC
- Data export through USB port
- Up to 59,994 programs for different kinds of condition
- Footprint: W x L = 15.75″ x 23.62″ (400 x 600mm); Height: 29.14″ (740mm)
Technical Specifications
|
Control Unit |
Control Panel | 10.4” color touch-screen Interface, (Resolution: 800 x 600 pixels) |
|
Communication Port |
Remote control through Ethernet, Analog AUX port for system extension |
|
| Storage Program |
Up to 59,994 programs for different kinds of condition |
|
|
Data Internal Storage |
Up to 100 data files | |
| Data External Storage Interface |
USB port |
|
|
Cabinet Material |
Front panel: ABS / Housing: Painted iron | |
| Dimension |
Footprint: W x L = 15.75″ x 23.62″ (400 x 600mm); Height: 29.14″ (740mm) |
|
|
Rated Voltage |
110V~/ 220V~ ; 50/60 Hz | |
| Aeration | Inlet Gas Flow-meter |
0, 1 – 2.5 LPM |
|
Temperature |
Heating | Thermostat system: Built-in heat exchanger, 550W heater/water circulation pump |
|
Cooling |
Automatic cooling water valve |
|
| Range |
5°C (41°F ) above coolant up to 60°C (140°F ) |
|
|
Resolution |
0.1°C | |
| Control Mode |
Manual or programmable 15-step PID control. |
|
|
Agitation |
Drive | Removable top brushless motor |
| Speed Range |
0, 1 – 60 rpm |
|
|
Resolution |
1rpm | |
| Control Mode |
Manual or programmable 15-step PID control. |
|
|
Impeller |

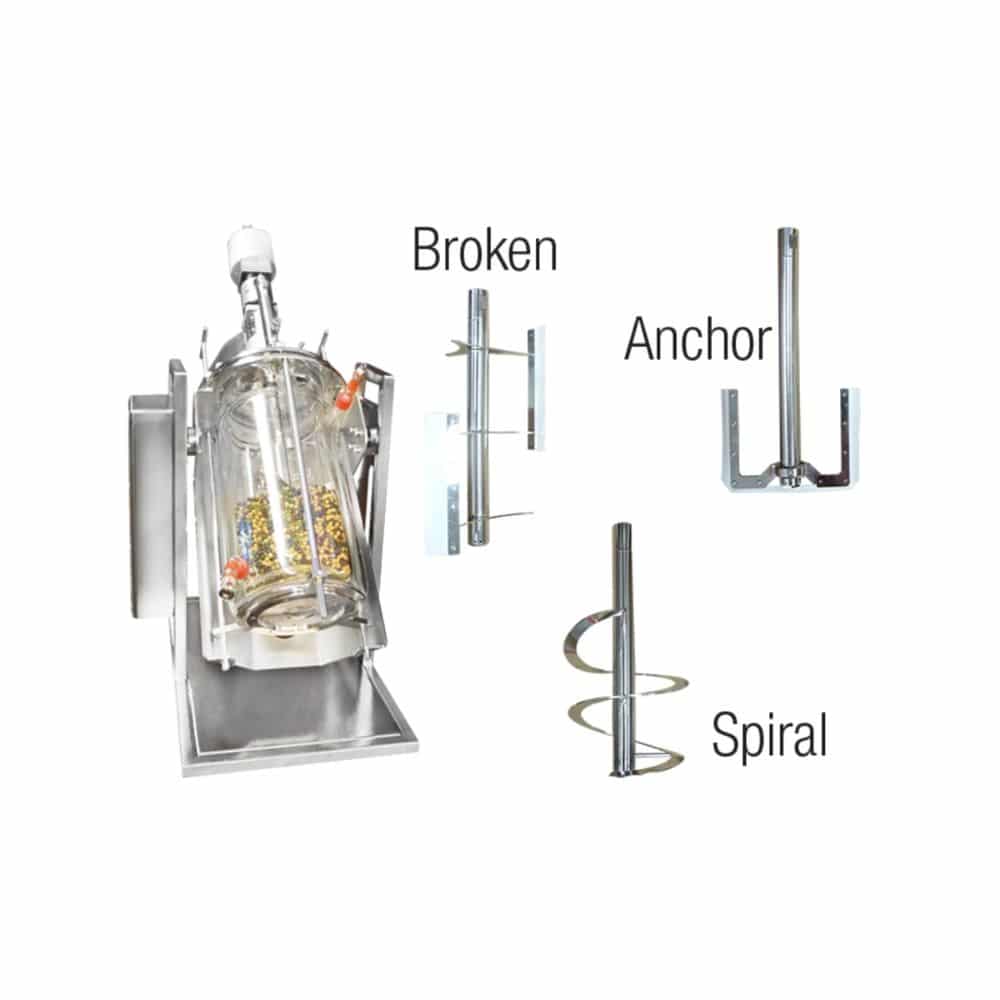

1. Broken type (FS-A-IM305) 2. Anchor type (FS-A-IM405) 3. Spiral type (FS-A-IM505) (Select one from the above type, and only anchor impeller can be used with pH and DO probes) *Note: Customized impellers are available. |
|
|
Vessel Swing |
Angle Range |

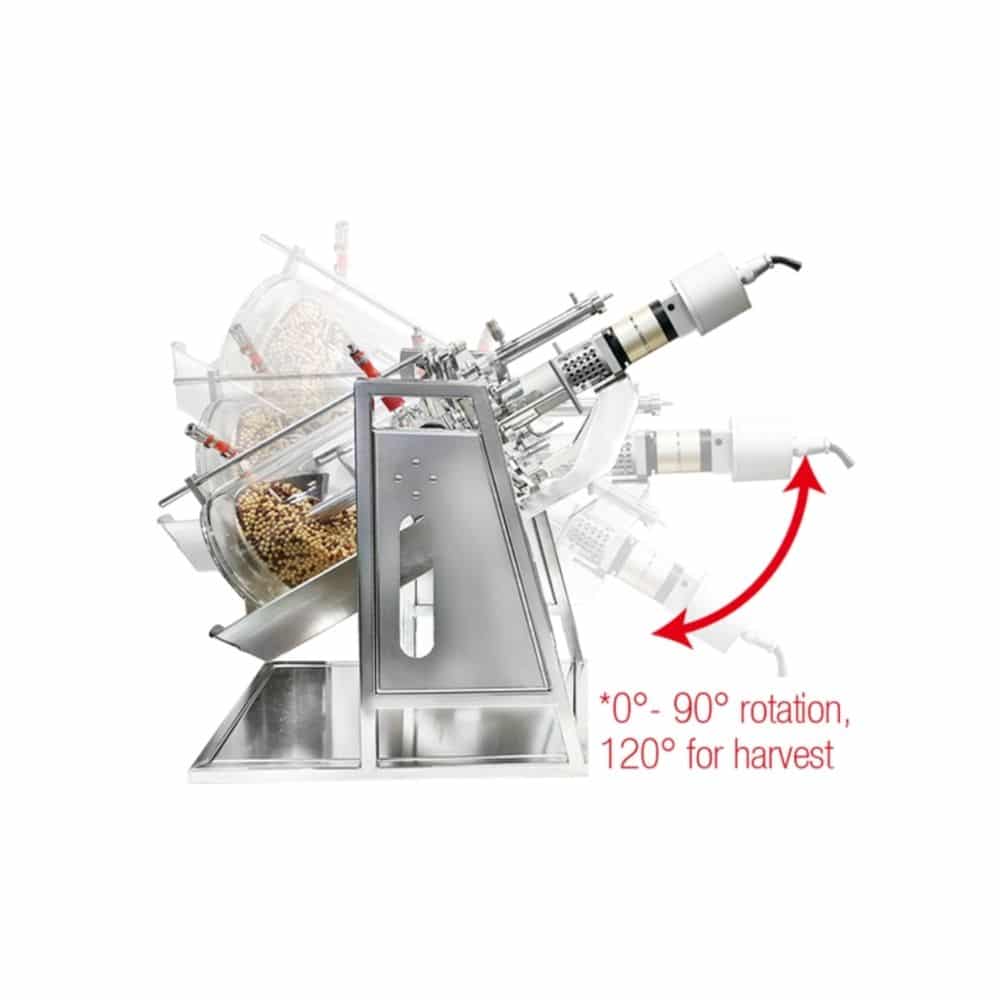

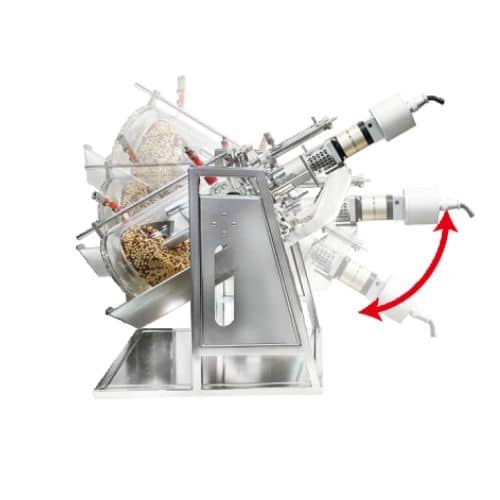

Normal operation: 0°~90°, adjustable time interval Harvest mode: 0°/ 120° |
| Control Mode |
Programmable control |
Technical Specifications
|
Control Unit |
Control Panel | 10.4” color touch-screen Interface, (Resolution: 800 x 600 pixels) |
|
Communication Port |
Remote control through Ethernet, Analog AUX port for system extension |
|
| Storage Program |
Up to 59,994 programs for different kinds of condition |
|
|
Data Internal Storage |
Up to 100 data files | |
| Data External Storage Interface |
USB port |
|
|
Cabinet Material |
Front panel: ABS / Housing: Painted iron | |
| Dimension |
Footprint: W x L = 15.75" x 23.62" (400 x 600mm); Height: 29.14" (740mm) |
|
|
Rated Voltage |
110V~/ 220V~ ; 50/60 Hz | |
| Aeration | Inlet Gas Flow-meter |
0, 1 – 2.5 LPM |
|
Temperature |
Heating | Thermostat system: Built-in heat exchanger, 550W heater/water circulation pump |
|
Cooling |
Automatic cooling water valve |
|
| Range |
5°C (41°F ) above coolant up to 60°C (140°F ) |
|
|
Resolution |
0.1°C | |
| Control Mode |
Manual or programmable 15-step PID control. |
|
|
Agitation |
Drive | Removable top brushless motor |
| Speed Range |
0, 1 – 60 rpm |
|
|
Resolution |
1rpm | |
| Control Mode |
Manual or programmable 15-step PID control. |
|
|
Impeller |
1. Broken type (FS-A-IM305) 2. Anchor type (FS-A-IM405) 3. Spiral type (FS-A-IM505) (Select one from the above type, and only anchor impeller can be used with pH and DO probes) *Note: Customized impellers are available. |
|
|
Vessel Swing |
Angle Range |
Normal operation: 0°~90°, adjustable time interval Harvest mode: 0°/ 120° |
| Control Mode |
Programmable control |
